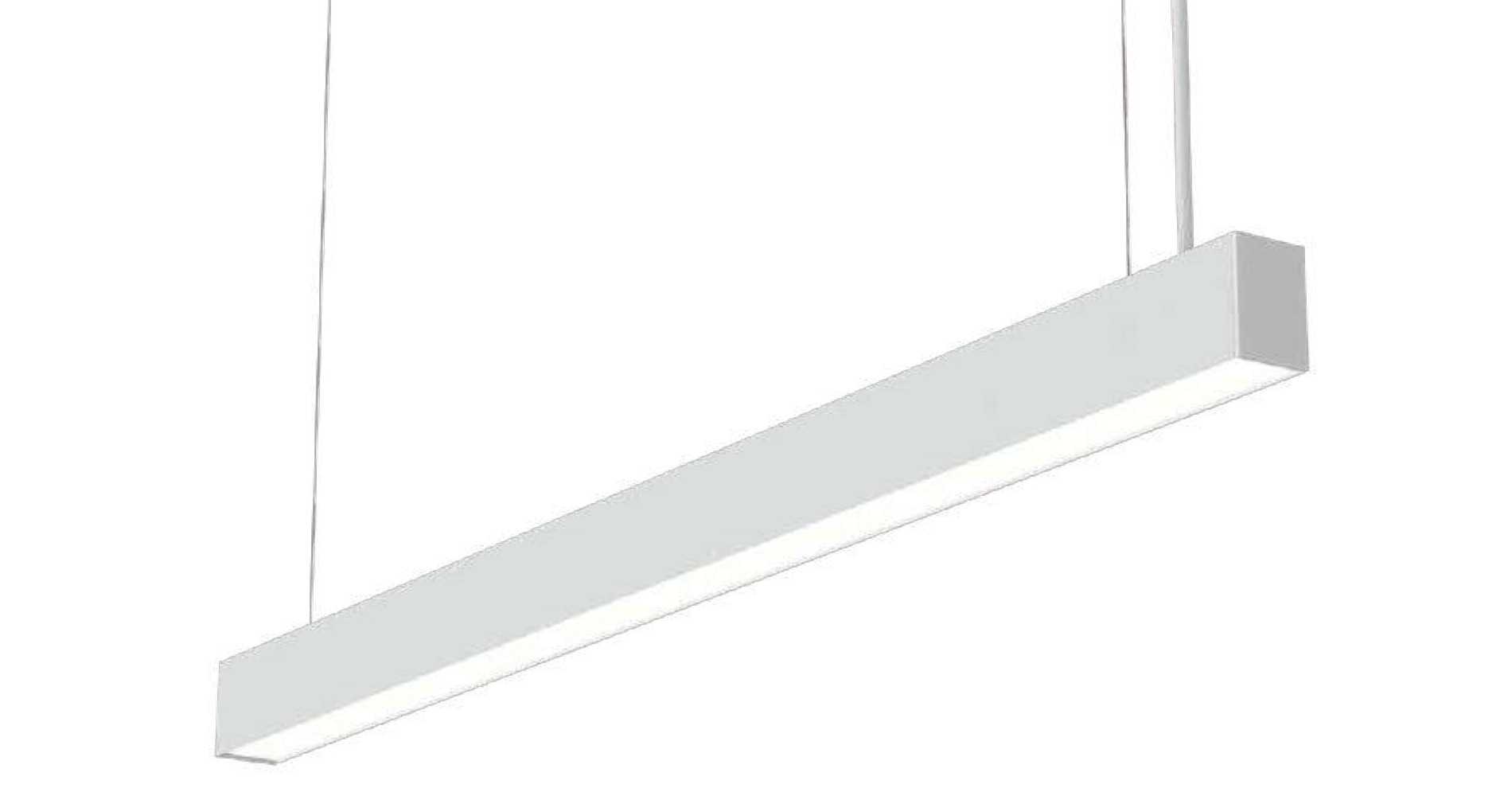

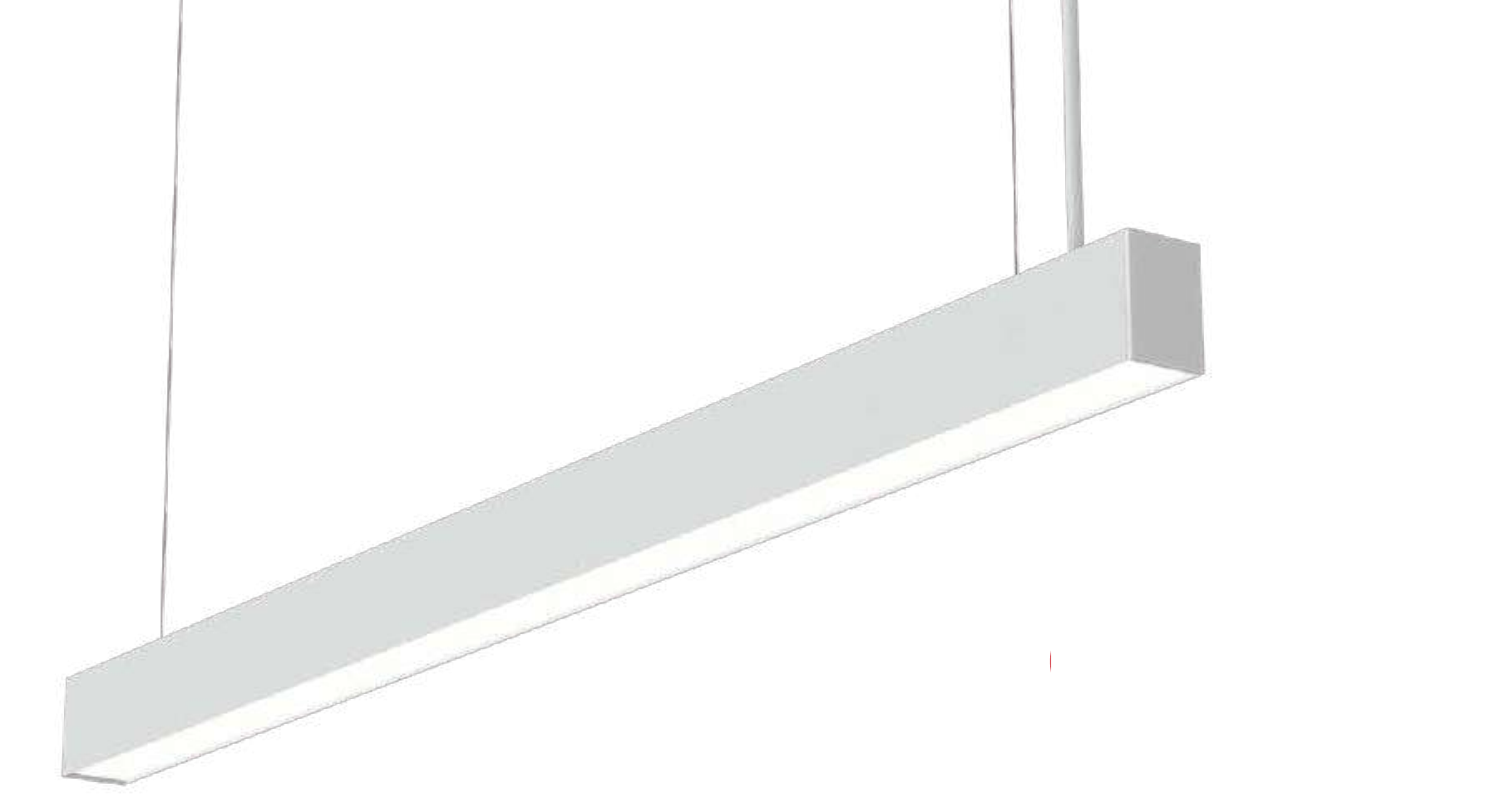

Jolite JL-PE Perse is a series of linkable LED linear lights (15W–75W, 100/120/130 lm/W, 600–3000mm) with fast screw-free connection for office and commercial lighting projects.

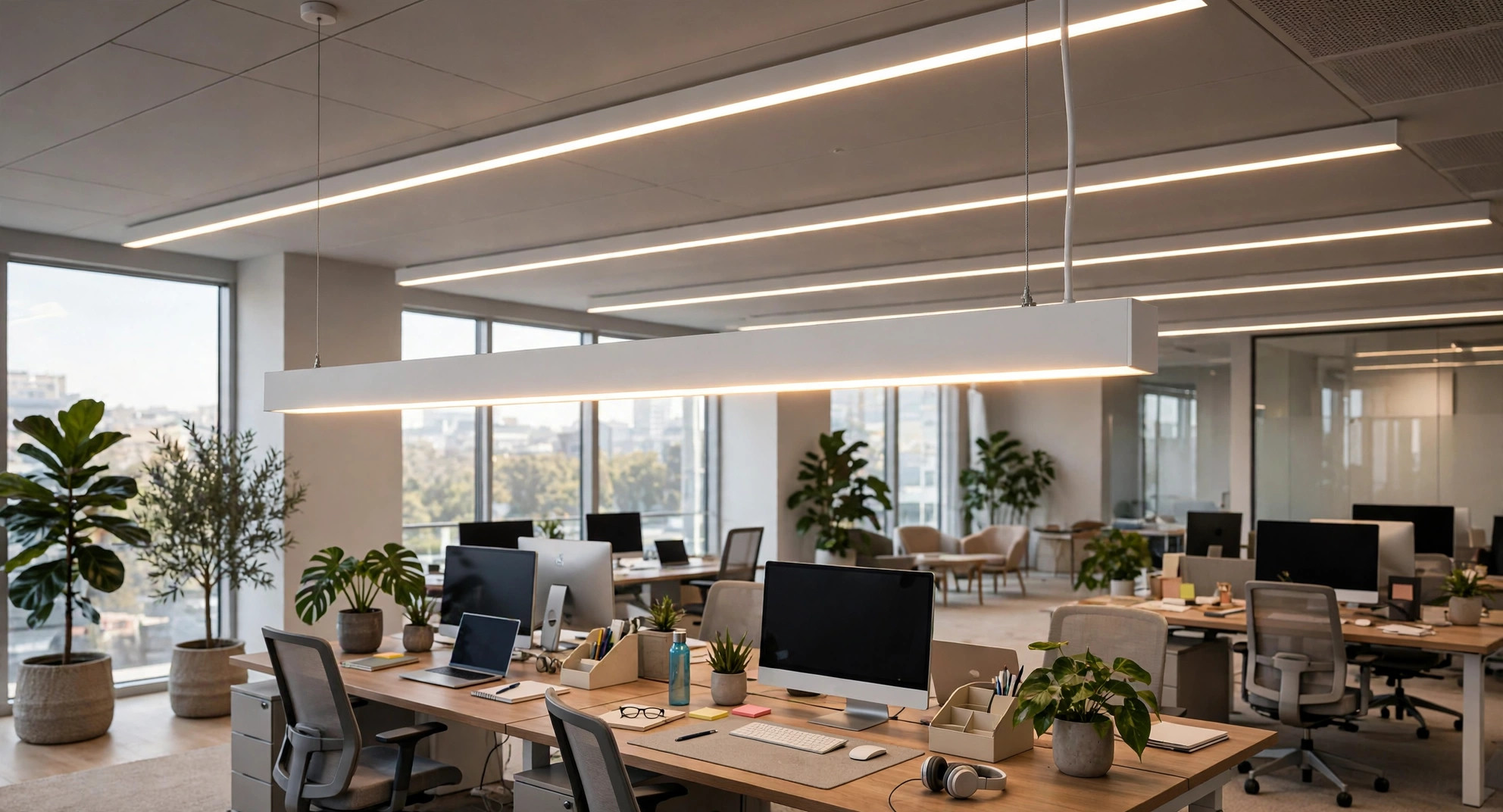

A linkable LED linear system for offices and commercial spaces. The JL-PE Perse series connects in long continuous runs with a fast screw-free connection, cutting installation time on large ceilings — no separate trunking work for each section.

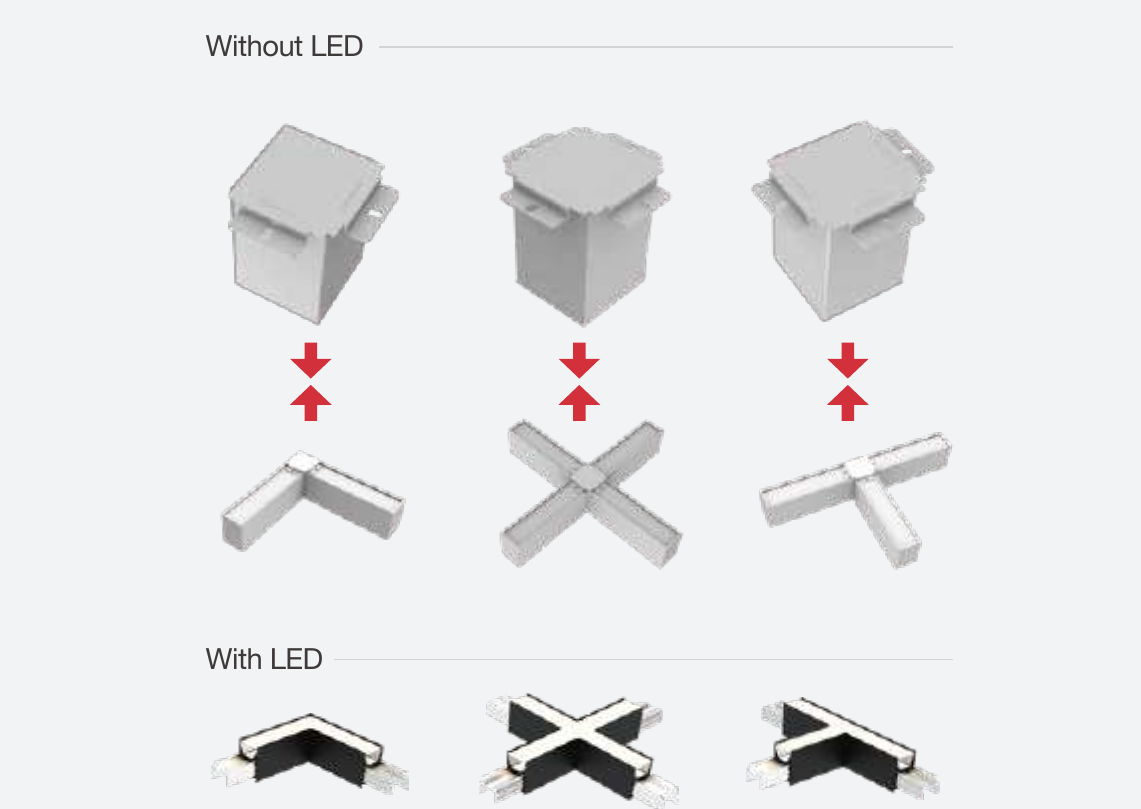

Six lengths cover most layouts: 600mm, 1200mm, 1500mm, 1800mm, 2400mm and 3000mm, at 15W, 30W, 38W, 45W, 60W and 75W, all at 100/120/130 lm/W. The system is 1-10V dimmable, offered in white or black finish, with CE drivers and ERP-class performance. The same trunking is also available without LED modules (bare-trunking option, as shown in the catalogue) — the six JL-PE models above are the With LED finished versions.
Built for long commercial service: 50000h lifetime at L80B50, CRI 80 with CRI 90 optional, and a 5-year warranty. Supplied for projects with QC inspection and export support.
Brand: Jolite
Specifications

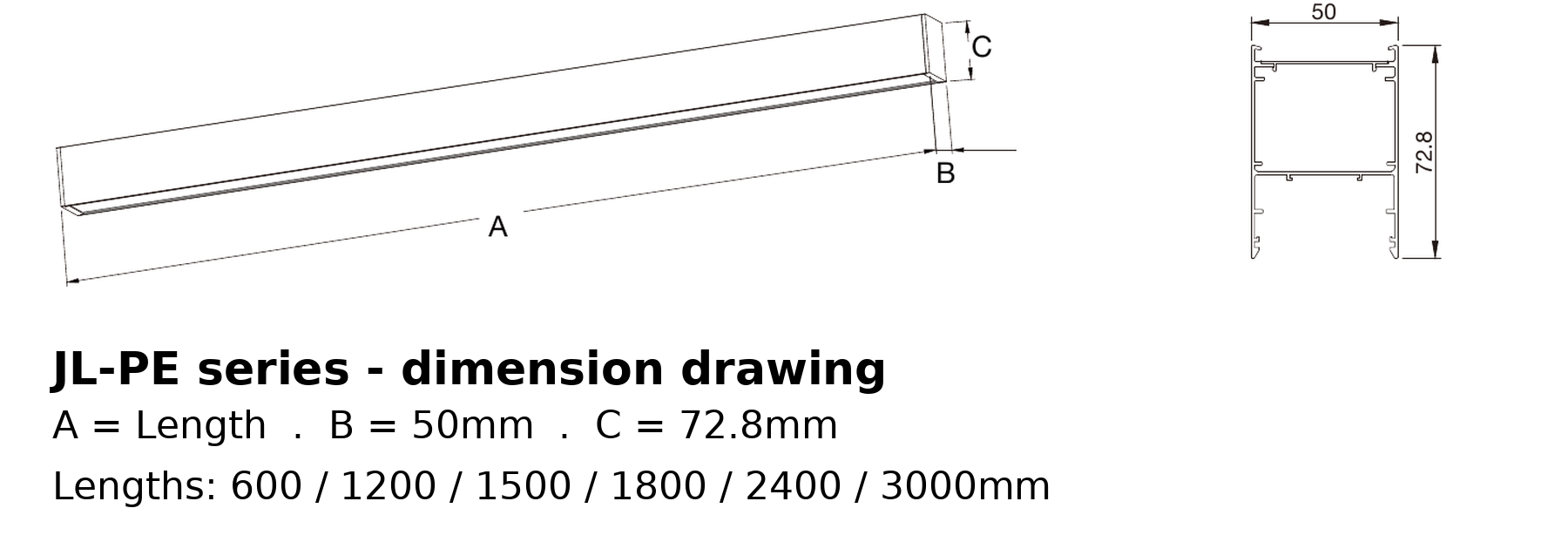

| Item No. | Power(w) | Lumen efficiency(lm/w±10%) | Size(AxBxCmm) | Q'ty/CTN |
|---|---|---|---|---|
| JL-PE15 | 15 | 100/120/130 | 600x50x72.8 | 9PCS |
| JL-PE30 | 30 | 100/120/130 | 1200x50x72.8 | 9PCS |
| JL-PE38 | 38 | 100/120/130 | 1500x50x72.8 | 9PCS |
| JL-PE45 | 45 | 100/120/130 | 1800x50x72.8 | 4PCS |
| JL-PE60 | 60 | 100/120/130 | 2400x50x72.8 | 4PCS |
| JL-PE75 | 75 | 100/120/130 | 3000x50x72.8 | 4PCS |
FAQ
Q: What lengths and wattages are available?
A: 600mm/15W, 1200mm/30W, 1500mm/38W, 1800mm/45W, 2400mm/60W and 3000mm/75W.
Q: How does the linkable connection work?
A: Sections join in continuous runs with a fast screw-free connection.
Q: Is it dimmable?
A: Yes, 1-10V dimmable.
Q: What is the lifetime and warranty?
A: 50000h at L80B50, with a 5-year warranty.
Q: What finishes are available?
A: White or black.
