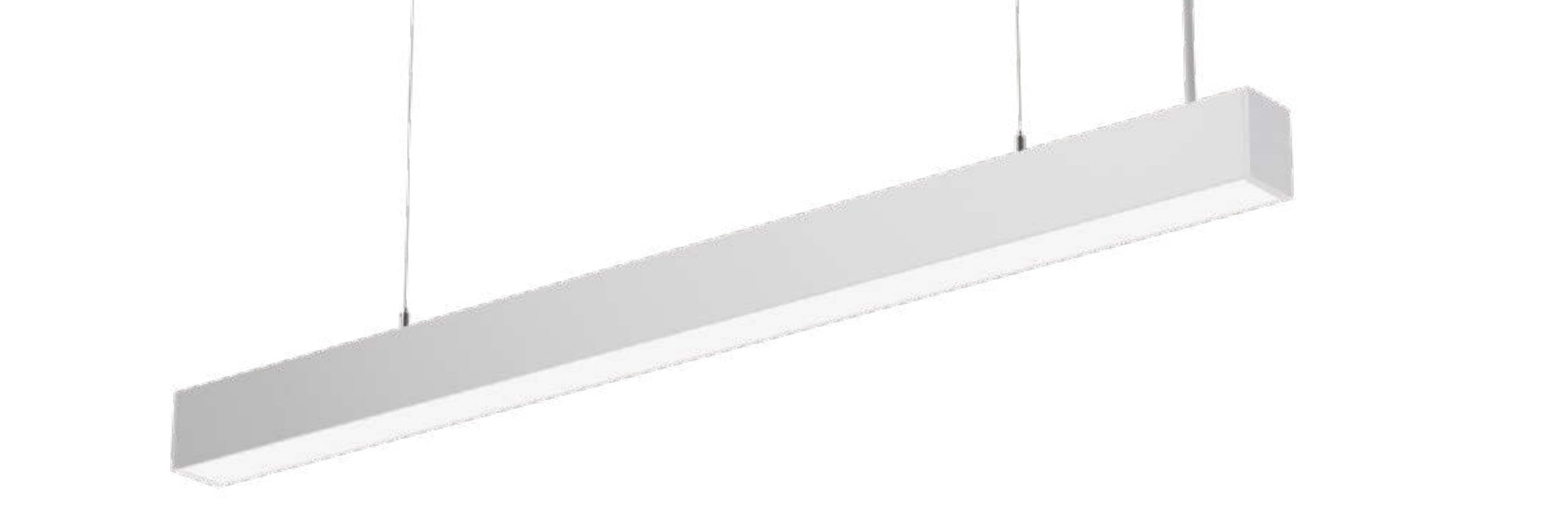

Jolite JL-DE Delphi LED Linear Light
Jolite JL-DE Delphi is a series of up-and-down LED linear lights (15W–38W, 130 lm/W, 580–1435mm), linkable and 1-10V dimmable, for office and commercial lighting projects.

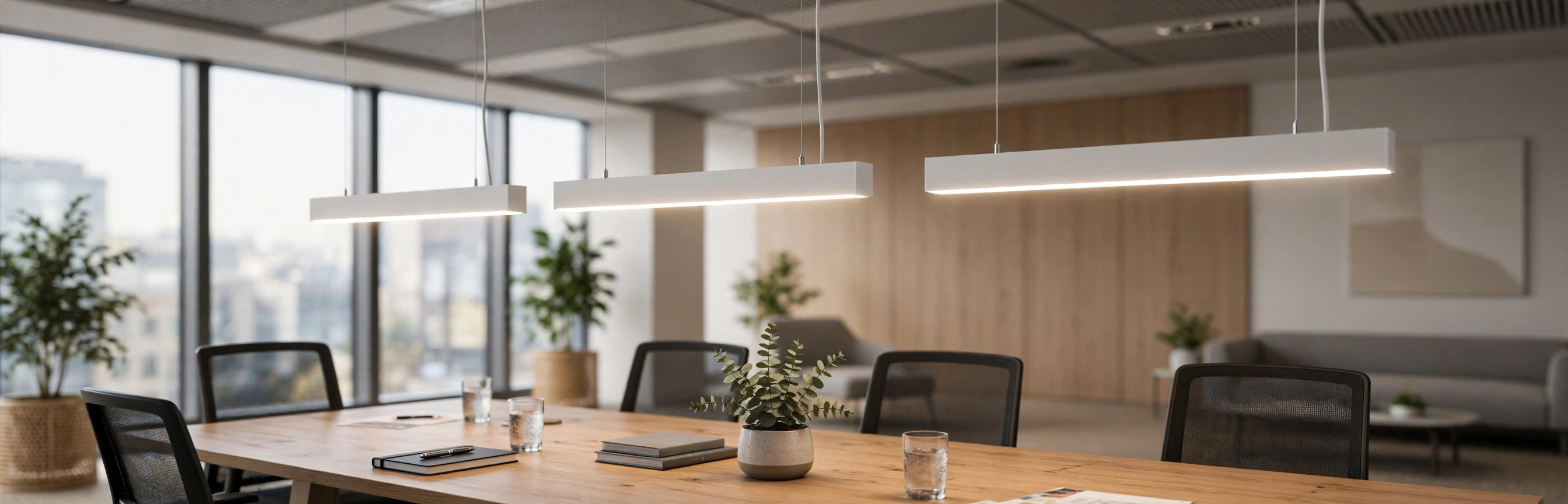

An up-and-down LED linear light for offices and commercial spaces. The JL-DE Delphi series lights both the work surface below and the ceiling above, softening contrast in meeting rooms, classrooms and open offices.
Three lengths cover most layouts: 580mm, 1150mm and 1435mm, at 15W, 30W and 38W, all at 130 lm/W. The system is linkable, 1-10V dimmable, and offered in white or black finish, with CE drivers and ERP-class performance.
Built for long commercial service: 50000h lifetime at L80B50, CRI 80 with CRI 90 optional, and a 5-year warranty. Supplied for projects with QC inspection and export support.
Specifications

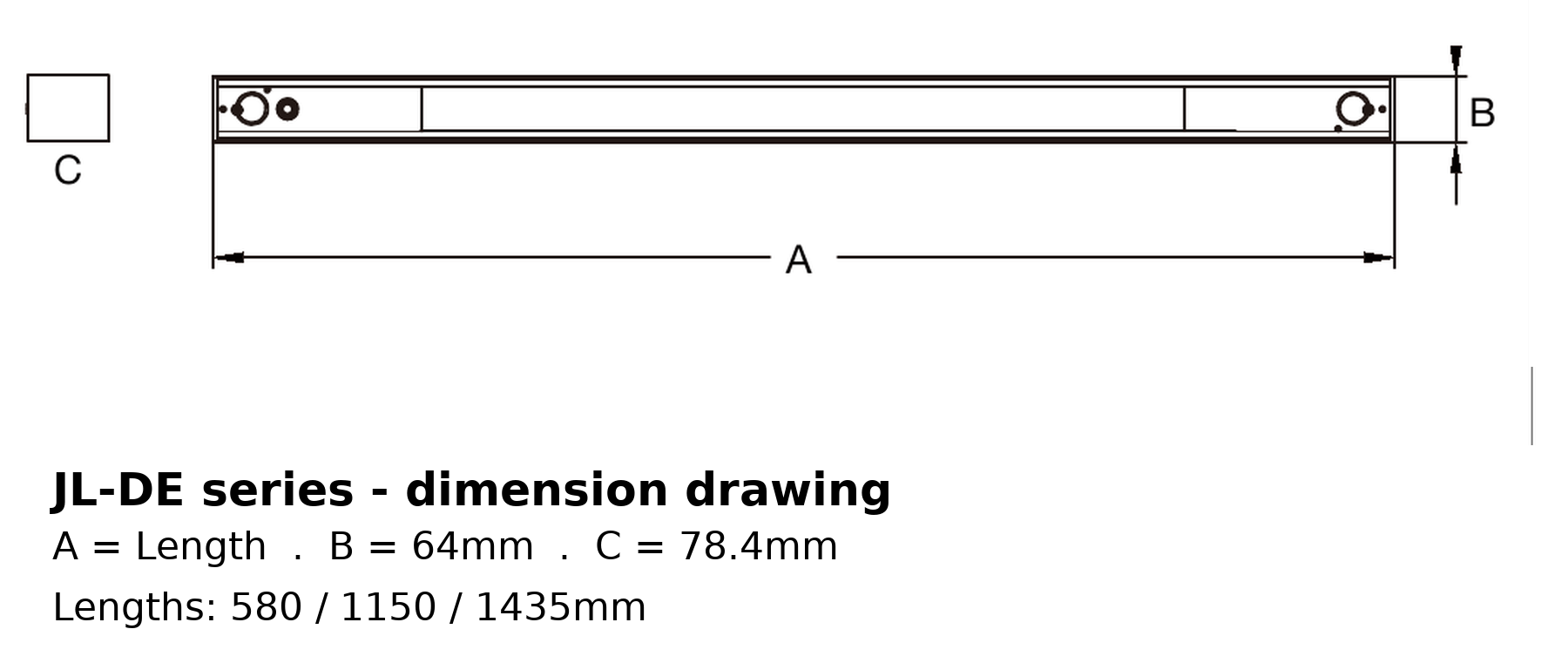

| Item No. | Power(w) | Lumen efficiency(lm/w±10%) | Size(AxBxCmm) | Q'ty/CTN |
|---|---|---|---|---|
| JL-DE15 | 15 | 130 | 580X64X78.4 | 9PCS |
| JL-DE30 | 30 | 130 | 1150X64X78.4 | 9PCS |
| JL-DE38 | 38 | 130 | 1435X64X78.4 | 9PCS |
FAQ
Q: What lengths and wattages are available?
A: 580mm/15W (JL-DE15), 1150mm/30W (JL-DE30) and 1435mm/38W (JL-DE38).
Q: What makes it up-and-down?
A: It lights the work surface below and the ceiling above, softening contrast.
Q: Is it dimmable and linkable?
A: Yes, 1-10V dimmable and linkable in runs.
Q: What is the lifetime and warranty?
A: 50000h at L80B50, with a 5-year warranty.
Q: What finishes are available?
A: White or black.
