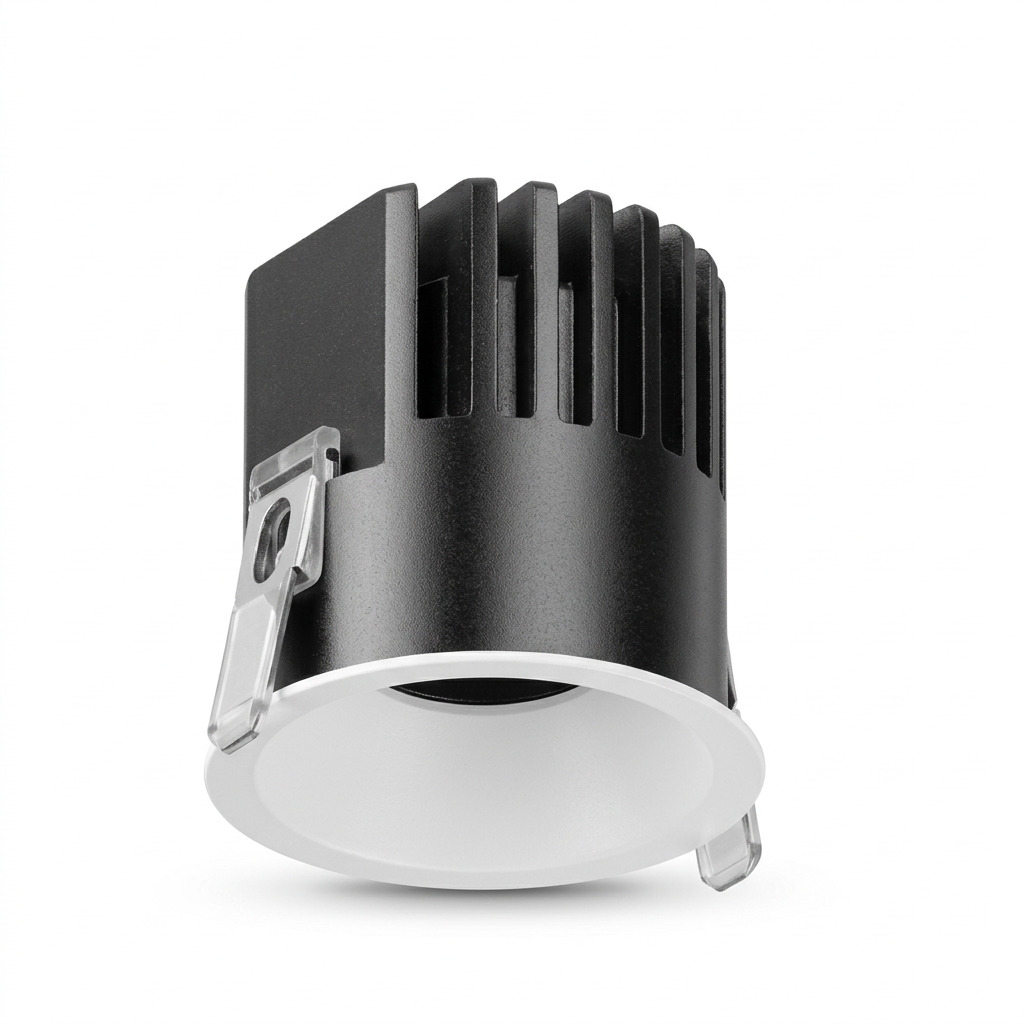

JL1950E Series Recessed LED Downlight
A deep-set recessed LED downlight from Jolite Lighting for commercial and hospitality projects. CREE / Bridgelux LED in 7W, 12W, 18W and 24W, 15° / 24° / 36° beam options, 3000K–6000K CCT and IP54 protection. A finned aluminum heat sink keeps the LED cool for long service life.
Key Features
- CREE / Bridgelux LED, up to 2160lm
- Four power options: 7W, 12W, 18W, 24W
- Three beam angles: 15°, 24°, 36°
- Deep-set reflector for comfortable, low-glare light
- Finned aluminum heat sink
- IP54 rated
- Dimming options: 1-10V, DALI, Tuya smart; constant-current driver
- CCT 3000K / 4000K / 5000K / 6000K; Sand Black or Sand White trim
- OEM/ODM and private label available

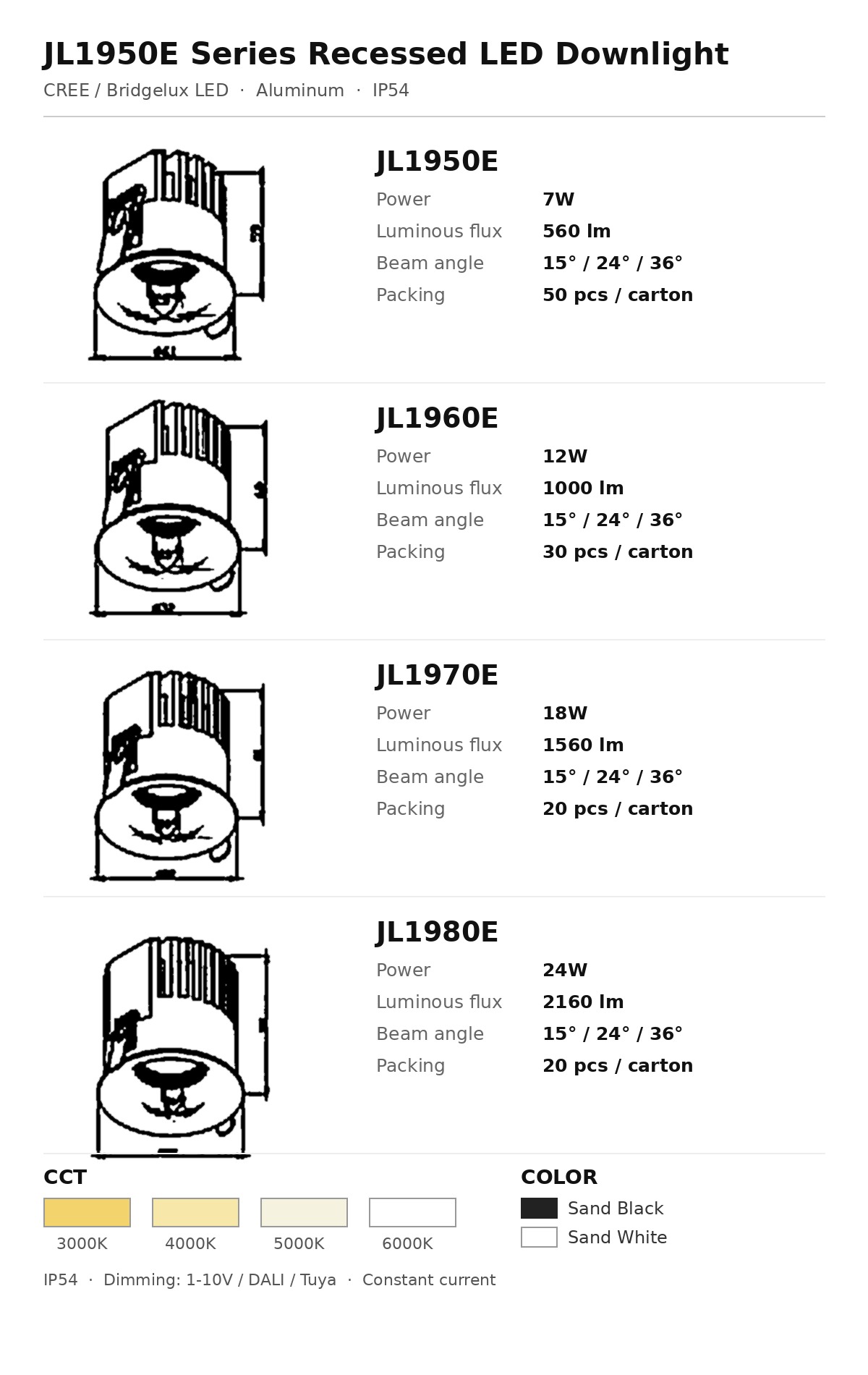

Specifications
| Model | Power | Luminous Flux | Beam Angle | Carton Qty |
|---|---|---|---|---|
| JL1950E | 7W | 560lm | 15°/24°/36° | 50 pcs |
| JL1960E | 12W | 1000lm | 15°/24°/36° | 30 pcs |
| JL1970E | 18W | 1560lm | 15°/24°/36° | 20 pcs |
| JL1980E | 24W | 2160lm | 15°/24°/36° | 20 pcs |
LED: CREE / Bridgelux · CCT: 3000K–6000K · Dimming: 1-10V / DALI / Tuya · Constant current · IP54 · Material: Aluminum · Finish: Sand Black / Sand White
Applications
Hotels, restaurants, offices, retail stores, showrooms, corridors, villas and residential living spaces.
FAQ
Q: Which beam angle should I choose?
A: 15° for focused accent lighting, 24° for display and feature lighting, 36° for general ambient lighting.
Q: Is it dimmable?
A: Yes. Choose 1-10V, DALI or Tuya smart dimming when ordering.
Q: How is it packed?
A: JL1950E 50 pcs per carton, JL1960E 30 pcs, JL1970E and JL1980E 20 pcs.
Q: Do you offer custom finishes or private label?
A: Yes. Jolite offers OEM/ODM, custom colors, logo and packaging.
