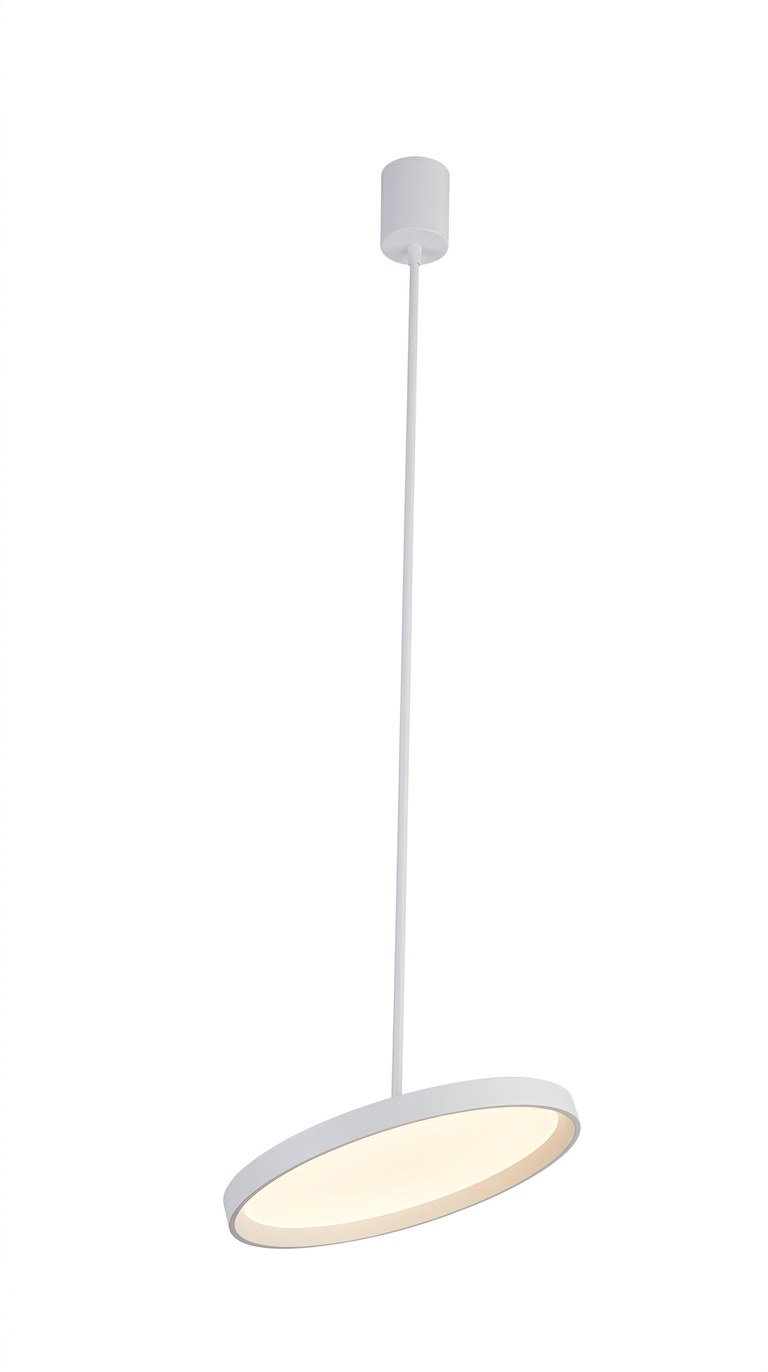

JL0074E Series Tiltable Round LED Panel Pendant
A single-rod round LED pendant from Jolite Lighting with a slim tiltable panel. The disc angles from 0° to 25°, so light can be directed toward a counter, table or display while keeping a light, modern silhouette. Two diameters, Ø350mm and Ø450mm, with 34W and 42W Bridgelux LED and a 100° beam.
Key Features
- Bridgelux LED, 2520lm and 3025lm
- Two sizes: Ø350mm (34W) and Ø450mm (42W)
- Panel tilts 0°–25° to aim the light

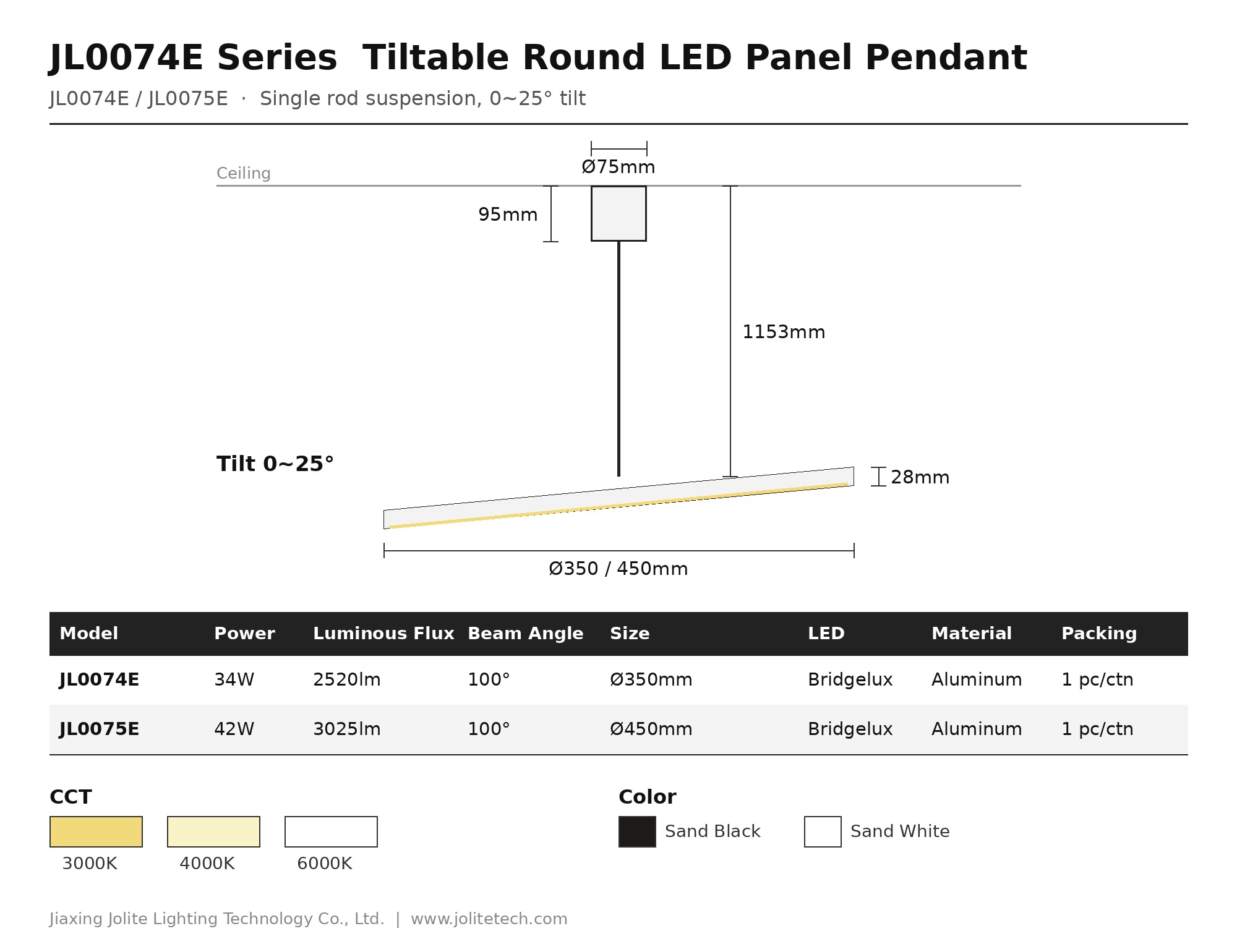

- Single rod suspension, 1153mm drop; Ø75 × 95mm canopy
- Slim 28mm panel with a wide 100° beam
- Natural-spectrum light with reduced blue-light energy and no UV
- Aluminum body; Sand Black or Sand White finish; CCT 3000K / 4000K / 6000K
Specifications
| Model | Power | Luminous Flux | Beam Angle | Diameter | Packing |
|---|---|---|---|---|---|
| JL0074E | 34W | 2520lm | 100° | Ø350mm | 1 pc/carton |
| JL0075E | 42W | 3025lm | 100° | Ø450mm | 1 pc/carton |
LED: Bridgelux · CCT: 3000K / 4000K / 6000K · Material: Aluminum · Finish: Sand Black / Sand White · Tilt: 0°–25° · Rod length: 1153mm · Canopy: Ø75 × 95mm
Applications

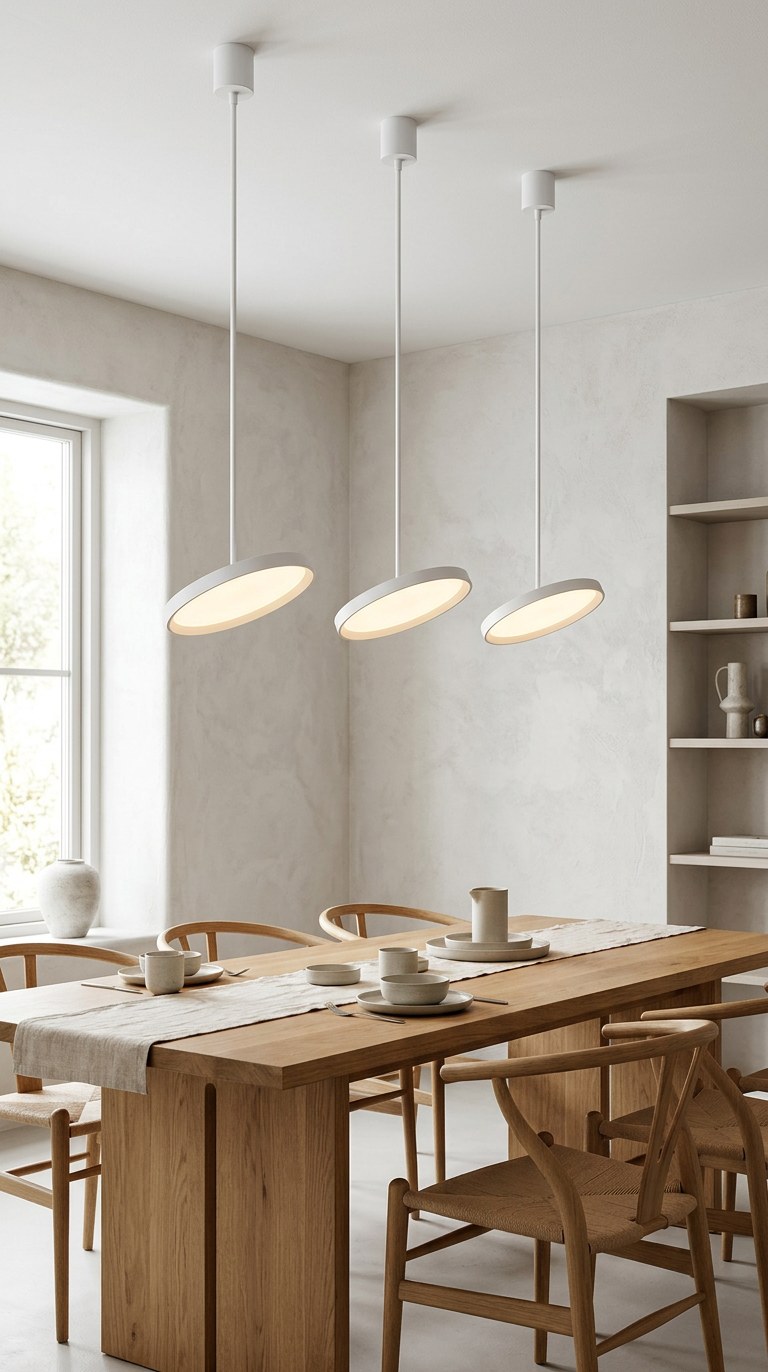

Bar counters, restaurants, cafés, dining tables, reception desks, hotel lobbies and retail displays.
FAQ
Q: Can the panel angle be adjusted?
A: Yes. The panel tilts from 0° to 25° to direct light where it is needed.
Q: How long is the suspension?
A: The single rod gives a 1153mm drop, with a Ø75 × 95mm ceiling canopy.
Q: What finishes are available?
A: Sand Black and Sand White, in 3000K, 4000K or 6000K.
Q: How is it packed?
A: 1 pc per carton for both models.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom finishes, logo and private-label packaging are available. Contact us for a quotation: [email protected]
