JL0340E Series Recessed Adjustable LED Downlight

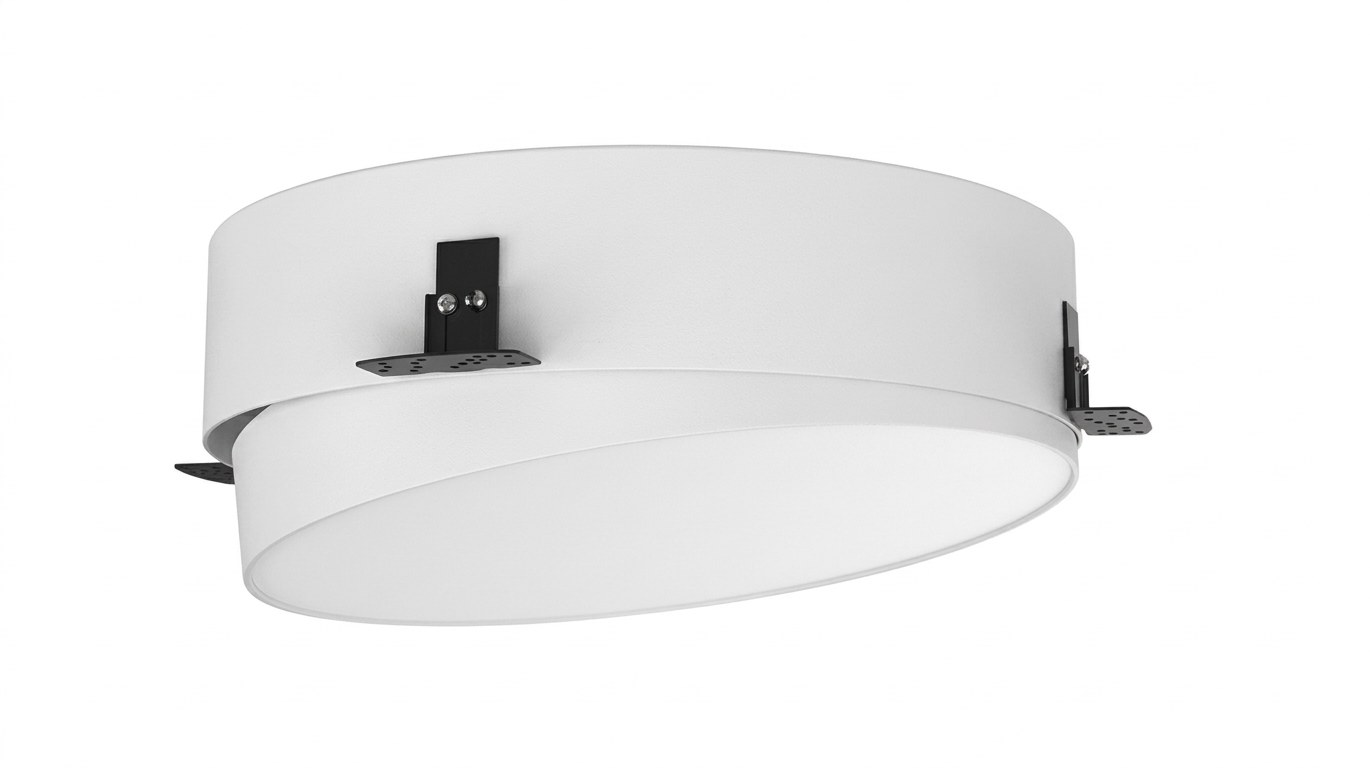

A trimless, plaster-in recessed LED downlight from Jolite Lighting. The round head tilts 0~45° and rotates 350°, so light can be aimed at walls, displays and merchandise while the fixture sits flush with the ceiling. Three sizes, 12W to 36W, with Bridgelux LED and a 100° beam.
Key Features
- Adjustable head: 0~45° tilt and 350° rotation
- Trimless plaster-in recessed installation, 100mm height
- Bridgelux LED, 880lm to 3480lm, 100° beam angle
- Cut-out Ø155 / Ø255 / Ø335mm
- Aluminum body in Sand White; CCT 3000K / 4000K / 6000K
- IP20, constant current; 1-10V, DALI or Tuya control options

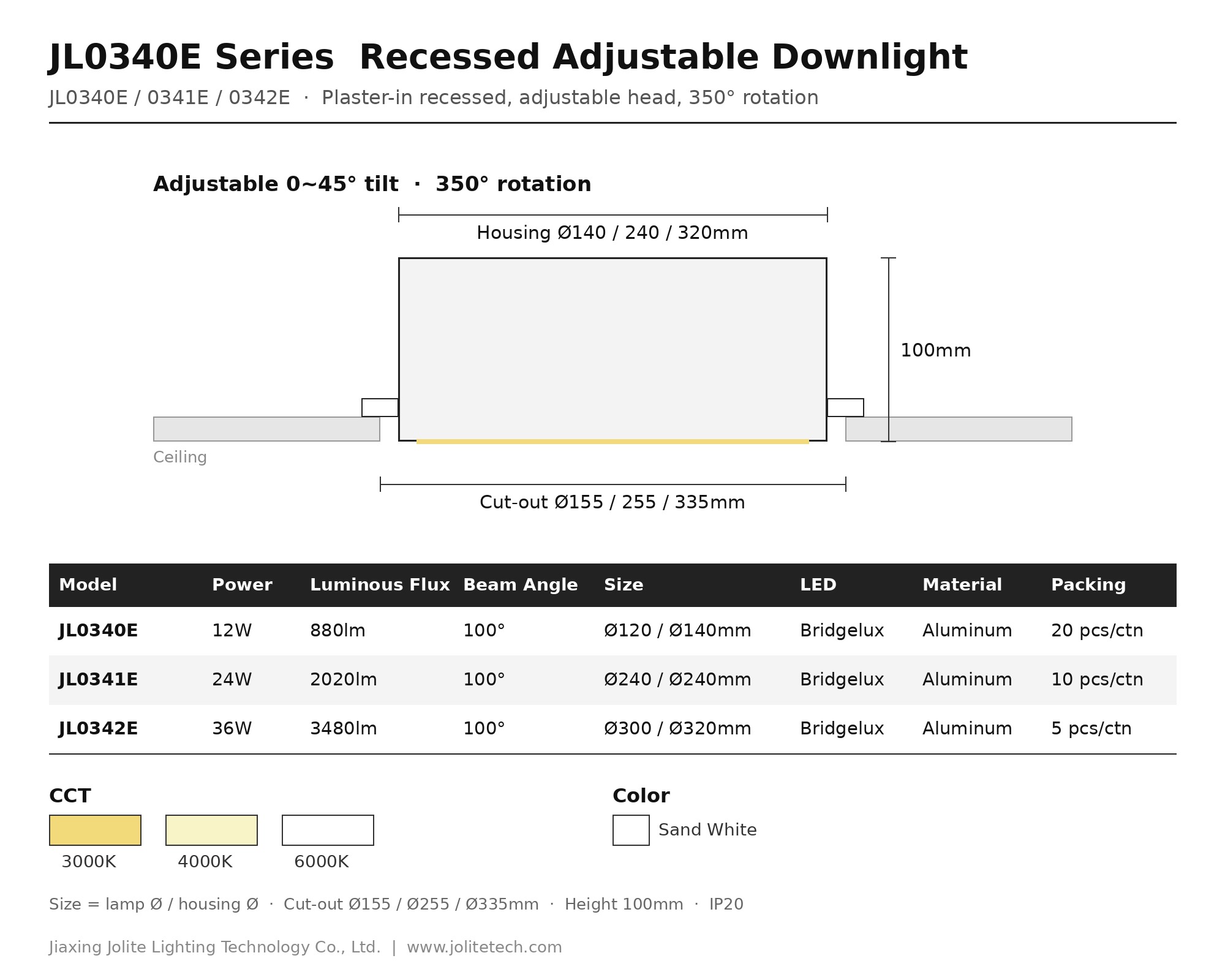

Specifications
| Model | Power | Luminous Flux | Beam Angle | Lamp / Housing | Cut-out | Packing |
|---|---|---|---|---|---|---|
| JL0340E | 12W | 880lm | 100° | Ø120 / Ø140mm | Ø155mm | 20 pcs/carton |
| JL0341E | 24W | 2020lm | 100° | Ø240 / Ø240mm | Ø255mm | 10 pcs/carton |
| JL0342E | 36W | 3480lm | 100° | Ø300 / Ø320mm | Ø335mm | 5 pcs/carton |
LED: Bridgelux · CCT: 3000K / 4000K / 6000K · Material: Aluminum · Finish: Sand White · Height: 100mm · IP20 · Mounting: trimless recessed
Applications

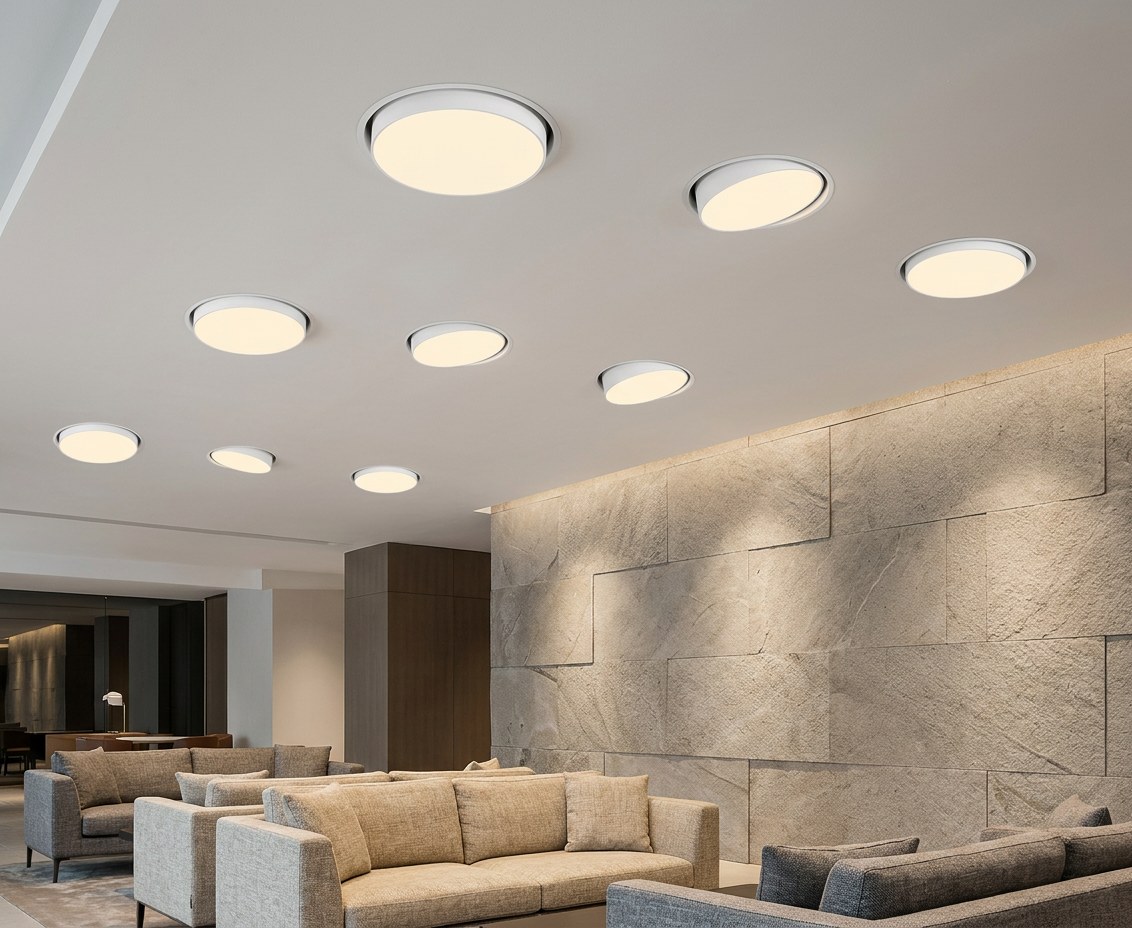

Clothing stores, showrooms, galleries, hotel lobbies, restaurants and offices.
FAQ
Q: How far can the head be adjusted?
A: It tilts from 0 to 45 degrees and rotates 350 degrees.
Q: What cut-out size do I need?
A: Ø155mm for JL0340E, Ø255mm for JL0341E and Ø335mm for JL0342E.
Q: Can it be dimmed?
A: 1-10V, DALI and Tuya control options are available; please tell us your system when ordering.
Q: How is it packed?
A: 20 / 10 / 5 pcs per carton from the smallest to the largest size.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom finishes, logo and private-label packaging are available. Contact us for a quotation: [email protected]
