ZL-MT Series Mini T LED Bulb, 5W to 15W

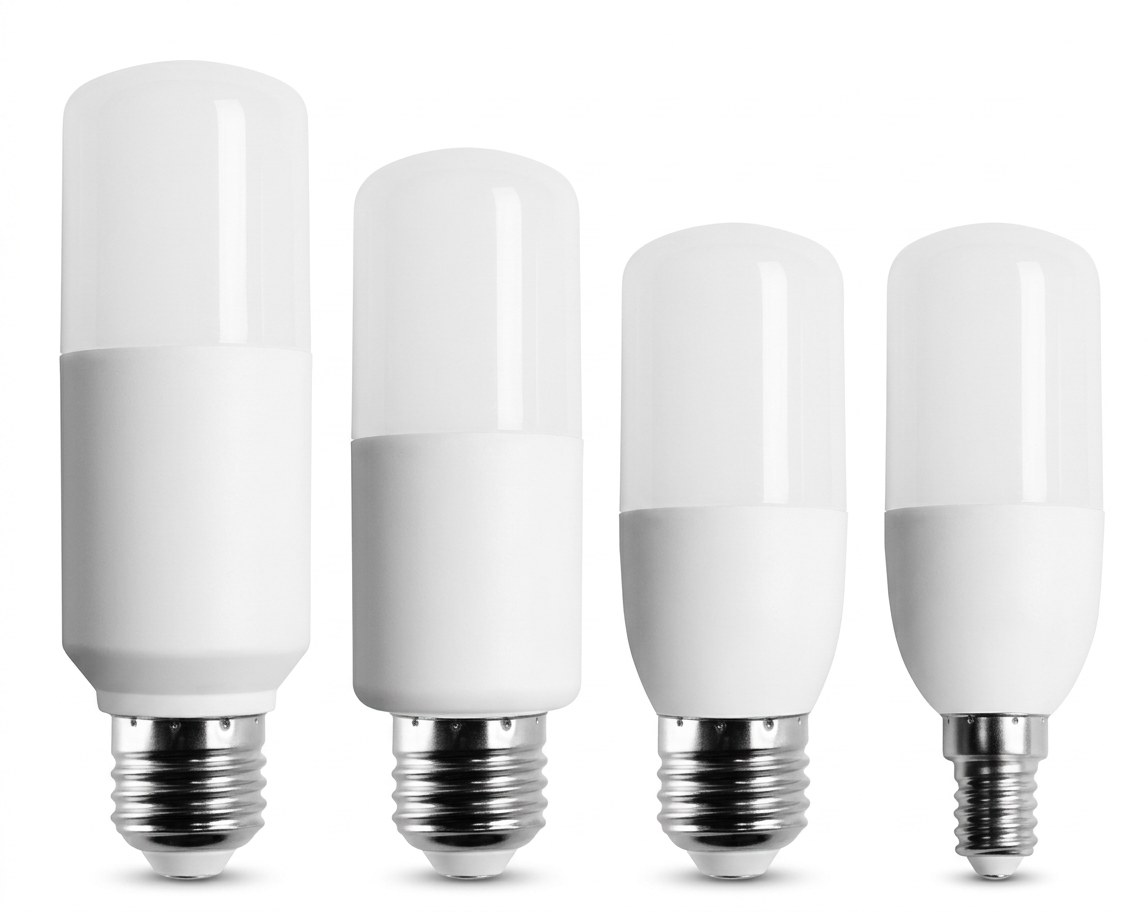

The ZL-MT Series is Jolite Lighting's Mini T LED bulb range in a slim cylindrical shape. Six models cover 5W to 15W, from the Φ37×97mm ZL-MT37-5W to the Φ45×134mm ZL-MT45-15W, with EPISTAR / SANAN 2835 LEDs, 90-100 lm/W efficacy and Ra≥80. The catalog photo shows the series with E27 and E14 screw bases.
Key Features
- Six models from 5W to 15W in MT37 and MT45 sizes
- Slim cylindrical Mini T body with rounded top
- 6 to 18 LEDs depending on model
- EPISTAR / SANAN 2835 LED, 90-100 lm/W, Ra≥80
- Input voltage 110/230V
- CE / RoHS

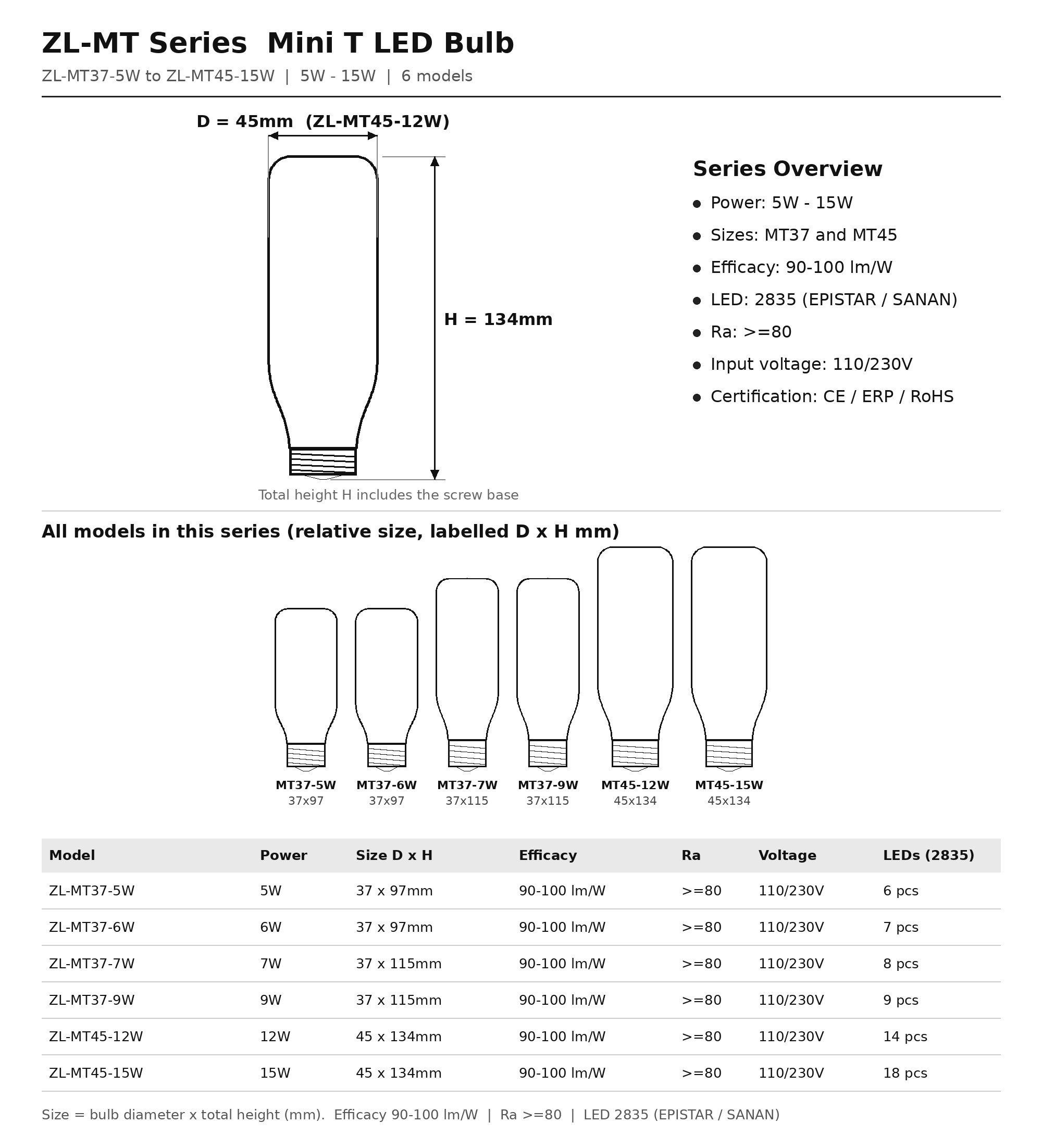

Specifications
| Model | Power | Size (Φ×H) | Efficacy | Ra | Input Voltage | LEDs (2835) |
|---|---|---|---|---|---|---|
| ZL-MT37-5W | 5W | 37×97mm | 90-100 lm/W | ≥80 | 110/230V | 6 pcs |
| ZL-MT37-6W | 6W | 37×97mm | 90-100 lm/W | ≥80 | 110/230V | 7 pcs |
| ZL-MT37-7W | 7W | 37×115mm | 90-100 lm/W | ≥80 | 110/230V | 8 pcs |
| ZL-MT37-9W | 9W | 37×115mm | 90-100 lm/W | ≥80 | 110/230V | 9 pcs |
| ZL-MT45-12W | 12W | 45×134mm | 90-100 lm/W | ≥80 | 110/230V | 14 pcs |
| ZL-MT45-15W | 15W | 45×134mm | 90-100 lm/W | ≥80 | 110/230V | 18 pcs |
LED: EPISTAR / SANAN 2835 · Efficacy: 90-100 lm/W · Ra: ≥80 · Input voltage: 110/230V
Applications
Table lamps, pendant lights, ceiling fixtures, kitchens, hallways, shops and homes that need a compact general-lighting bulb.
FAQ
Q: How many models are in the ZL-MT Series?
A: Six: ZL-MT37-5W, MT37-6W, MT37-7W, MT37-9W, MT45-12W and MT45-15W.
Q: What is the power and size range?
A: 5W to 15W. The diameter is 37mm or 45mm and the height 97mm, 115mm or 134mm depending on model.
Q: What LED and efficacy do the bulbs use?
A: EPISTAR / SANAN 2835 LEDs with 90-100 lm/W efficacy and Ra≥80.
Q: What input voltage is supported?
A: 110/230V.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom packaging and private-label options are available. Contact us for a quotation: [email protected]
