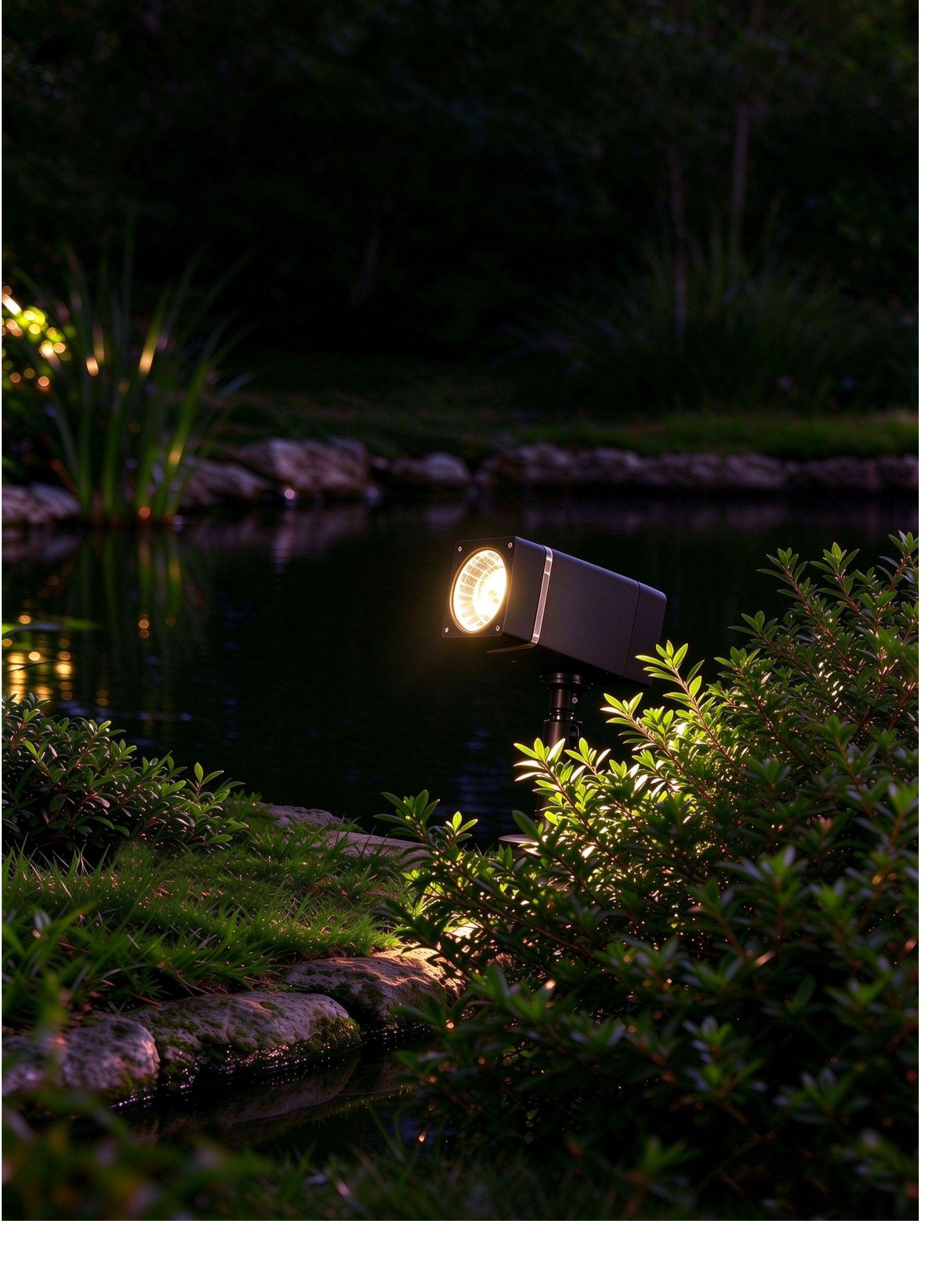

Four matching black aluminium fixtures for gardens, pathways and building exteriors. The JL garden light series covers the whole outdoor plan from one family: a 500mm spike light for planting beds and lawns, two rectangular wall lights for entrances and facades, and a compact adjustable spotlight for trees, shrubs and architectural details.
Every model comes in two versions: an LED version with built-in 3W SMD5050 (250lm, 24° beam, CRI 80), and a GU10 version taking a Max 7W GU10 lamp so the light source can be chosen on site. Colour temperature options are 3000K, 4000K and 6500K.
Built for outdoor service: aluminium housing, IP65 protection against dust and water, 220-240V with driver included, working temperature -20°C to 45°C. Supplied for projects with QC inspection and export support; OEM/ODM options available for project orders.
Specifications
| Model No. | LED Watt | Luminous Flux | LED Type | Beam Angle | CRI | PF | N.W. | PCS/Carton | Carton Dimensions | 20'/40'/40'HQ(pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| JL32601 | 3W | 250 lm | SMD5050 | 24° | 80 | >0.5 | 0.25 kg | 30 | 27.5*28.5*27 cm | 41400/84270/98550 |
| JL32602 | GU10(Max.7W) | / | / | / | / | / | 0.25 kg | 30 | 27.5*28.5*27 cm | 41400/84270/98550 |
| JL32603 | 2x3W | 2x250 lm | SMD5050 | 24° | 80 | >0.5 | 0.42 kg | 20 | 36*28.5*21 cm | 26340/53620/62700 |
| JL32604 | GU10(Max.7W) | / | / | / | / | / | 0.42 kg | 20 | 36*28.5*21 cm | 26340/53620/62700 |
| JL32701 | 3W | 250 lm | SMD5050 | 24° | 80 | >0.5 | 0.30 kg | 30 | 30.5*27*28 cm | 37800/76920/89970 |
| JL32702 | GU10(Max.7W) | / | / | / | / | / | 0.30 kg | 30 | 30.5*27*28 cm | 37800/76920/89970 |
| JL15101 | 3W | 250 lm | SMD5050 | 24° | 80 | >0.5 | 0.22 kg | 20 | 49.5*40*29 cm | 10160/20680/24200 |
| JL15102 | GU10(Max.7W) | / | / | / | / | / | 0.22 kg | 20 | 49.5*40*29 cm | 10160/20680/24200 |
Jolite JL garden lights are a series of IP65 aluminium outdoor lights — a 500mm spike light, two wall lights and an adjustable spotlight — in LED 3W SMD 250lm 24° or GU10 Max 7W versions, for garden, pathway and facade lighting projects.
FAQ
Q: What models and forms are included?

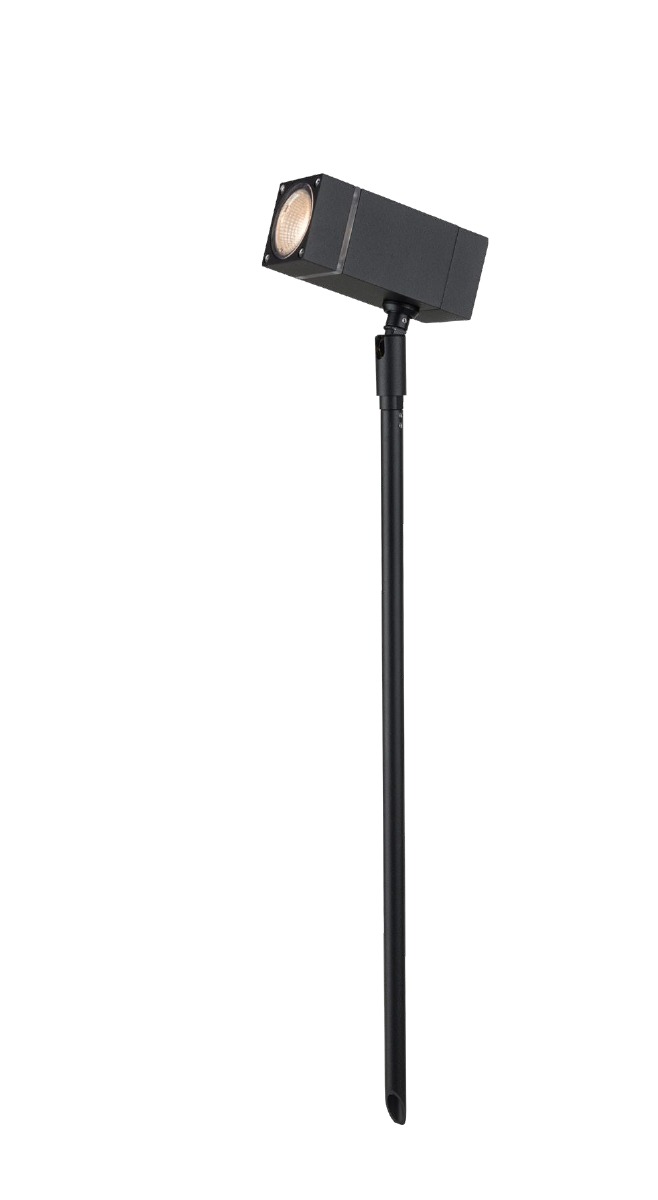

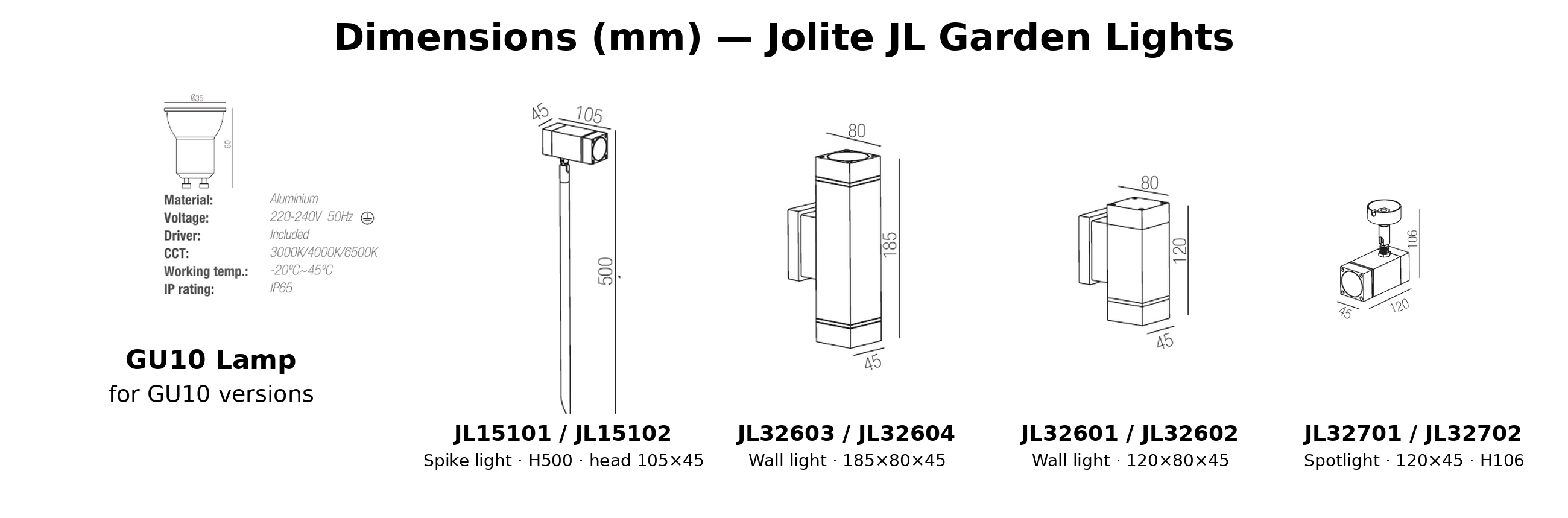

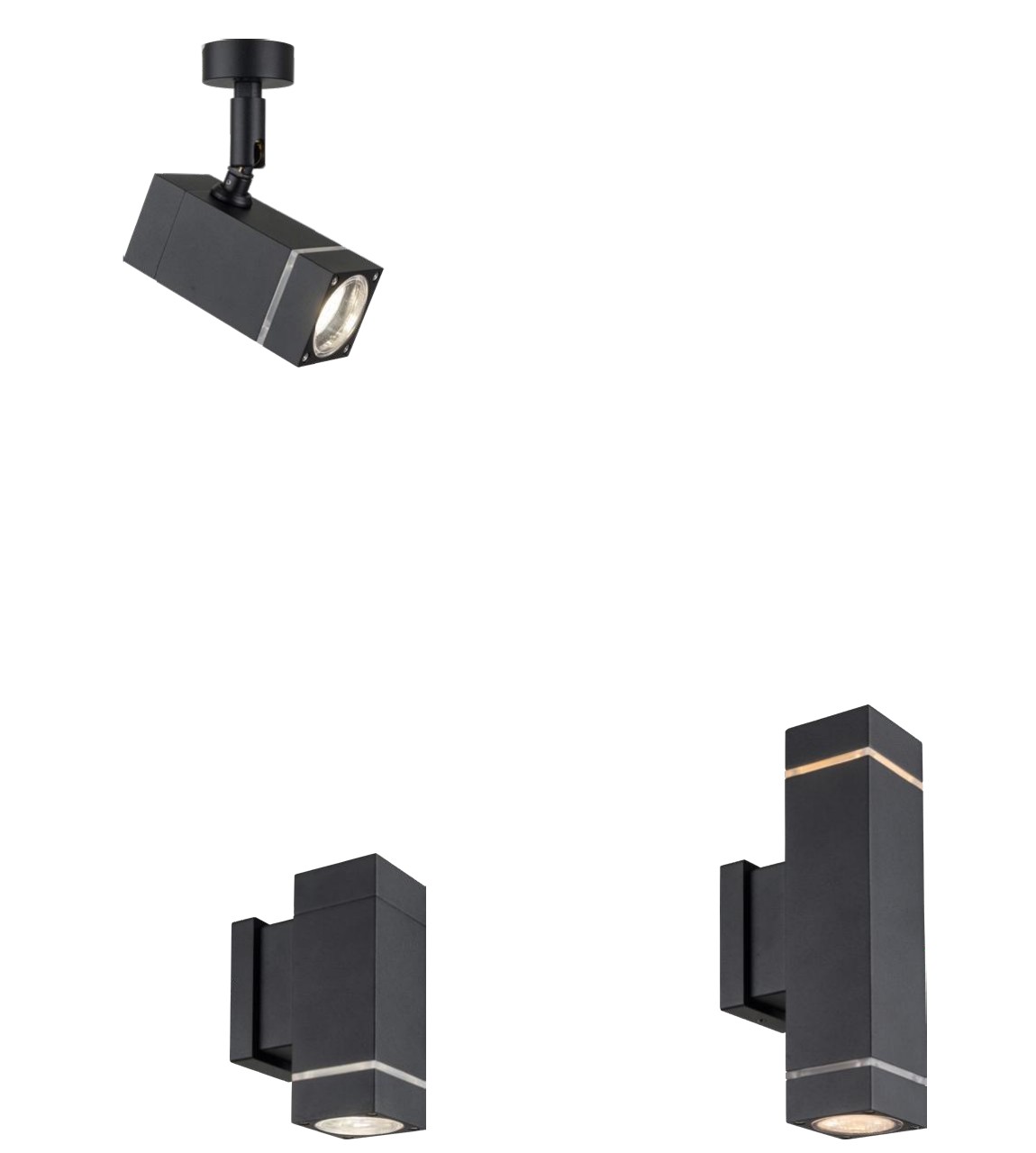

A: JL15101/JL15102 spike light (H500mm), JL32601/JL32602 wall light (120×80×45mm), JL32603/JL32604 wall light (185×80×45mm), JL32701/JL32702 surface spotlight (120×45mm, H106mm).
Q: LED or GU10?
A: Both: LED versions are 3W SMD5050, 250lm, 24° beam, CRI 80; GU10 versions take a Max 7W GU10 lamp.
Q: What colour temperatures?
A: 3000K, 4000K and 6500K.
Q: Is it weatherproof?
A: Yes, IP65 rated, aluminium housing, working temperature -20°C to 45°C.
Q: What is the warranty?
A: 2 years.
Q: Can it be used for project orders?
A: Yes, with QC inspection, export support and OEM/ODM options.
