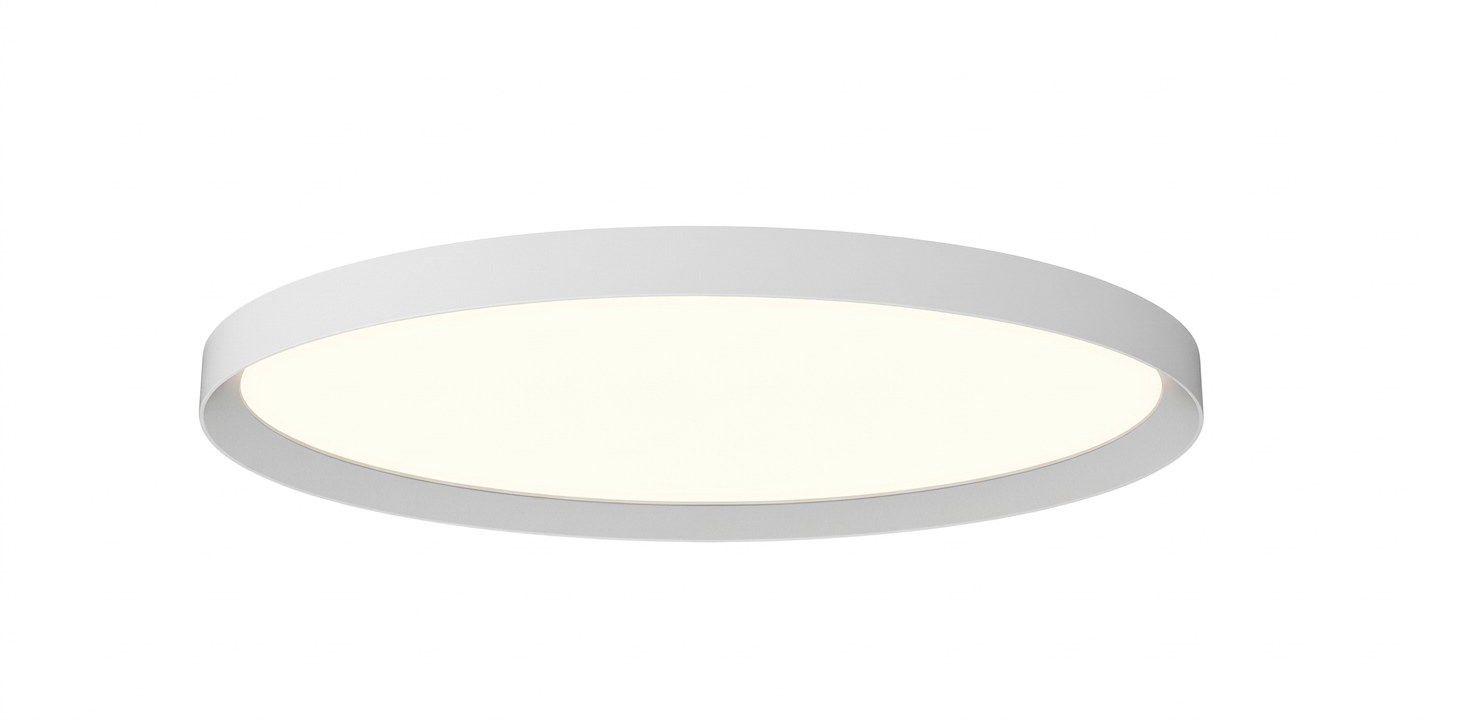

JL0070E Series Ultra-Thin Round LED Ceiling Panel
A minimalist surface-mounted round LED ceiling light from Jolite Lighting. The slim aluminum frame and flat opal panel give soft, even light with a clean architectural look. Four diameters from Ø350mm to Ø850mm cover bedrooms, living rooms, offices and hotel spaces, with 36W to 84W Bridgelux LED output and a wide 100° beam.
Key Features
- Bridgelux LED, 2520lm to 6385lm
- Four sizes: Ø350 / Ø450 / Ø650 / Ø850mm
- Slim profile: 60mm total height, 28mm panel
- Wide 100° beam angle for uniform room lighting
- Natural-spectrum light with reduced blue-light energy and no UV
- Aluminum housing; Sand Black, Sand White or Sand Gold finish
- CCT 3000K / 4000K / 6000K

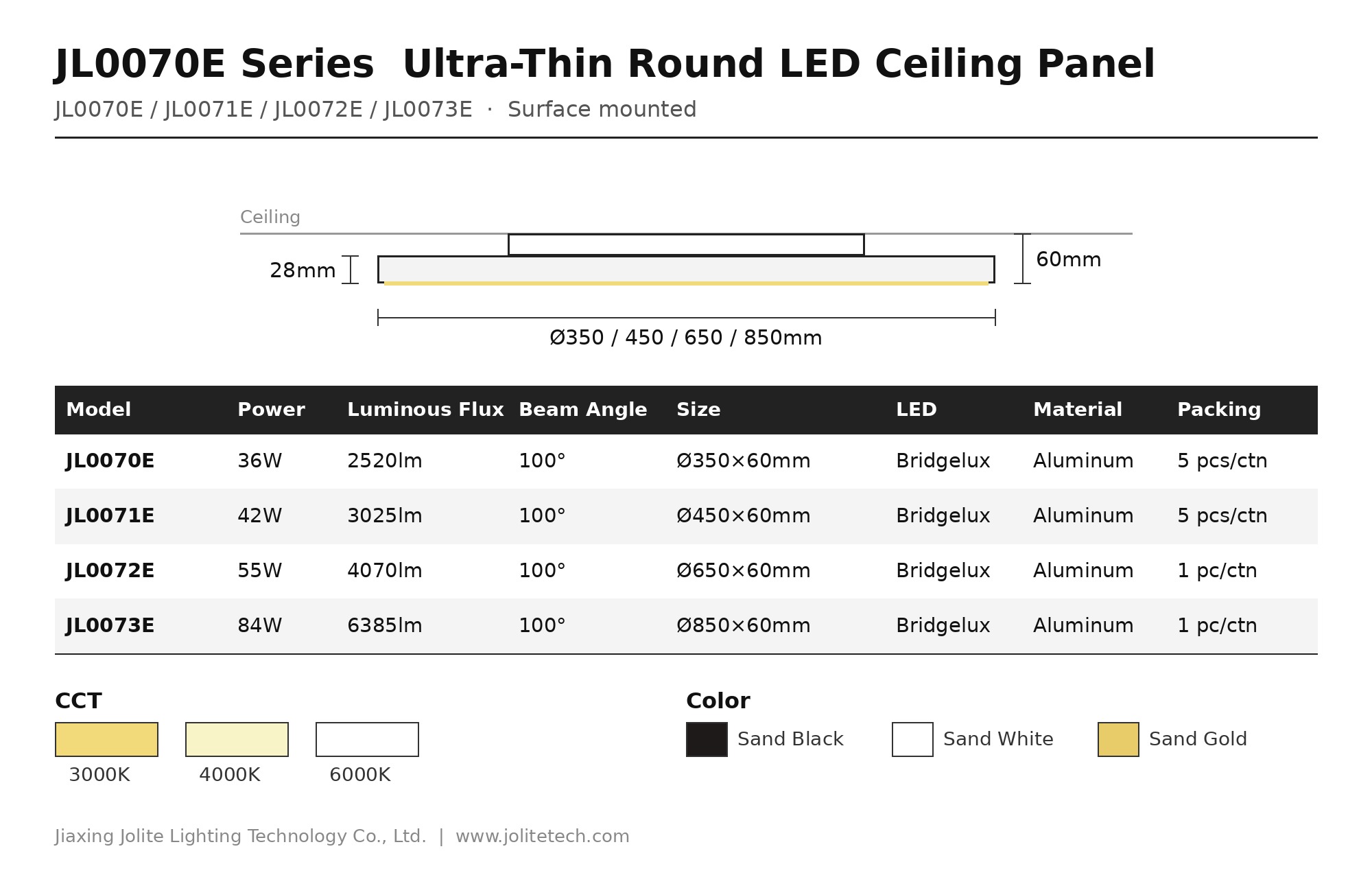

Specifications
| Model | Power | Luminous Flux | Beam Angle | Size | Packing |
|---|---|---|---|---|---|
| JL0070E | 36W | 2520lm | 100° | Ø350 × 60mm | 5 pcs/carton |
| JL0071E | 42W | 3025lm | 100° | Ø450 × 60mm | 5 pcs/carton |
| JL0072E | 55W | 4070lm | 100° | Ø650 × 60mm | 1 pc/carton |
| JL0073E | 84W | 6385lm | 100° | Ø850 × 60mm | 1 pc/carton |
LED: Bridgelux · CCT: 3000K / 4000K / 6000K · Material: Aluminum · Finish: Sand Black / Sand White / Sand Gold · Mounting: surface mounted
Applications

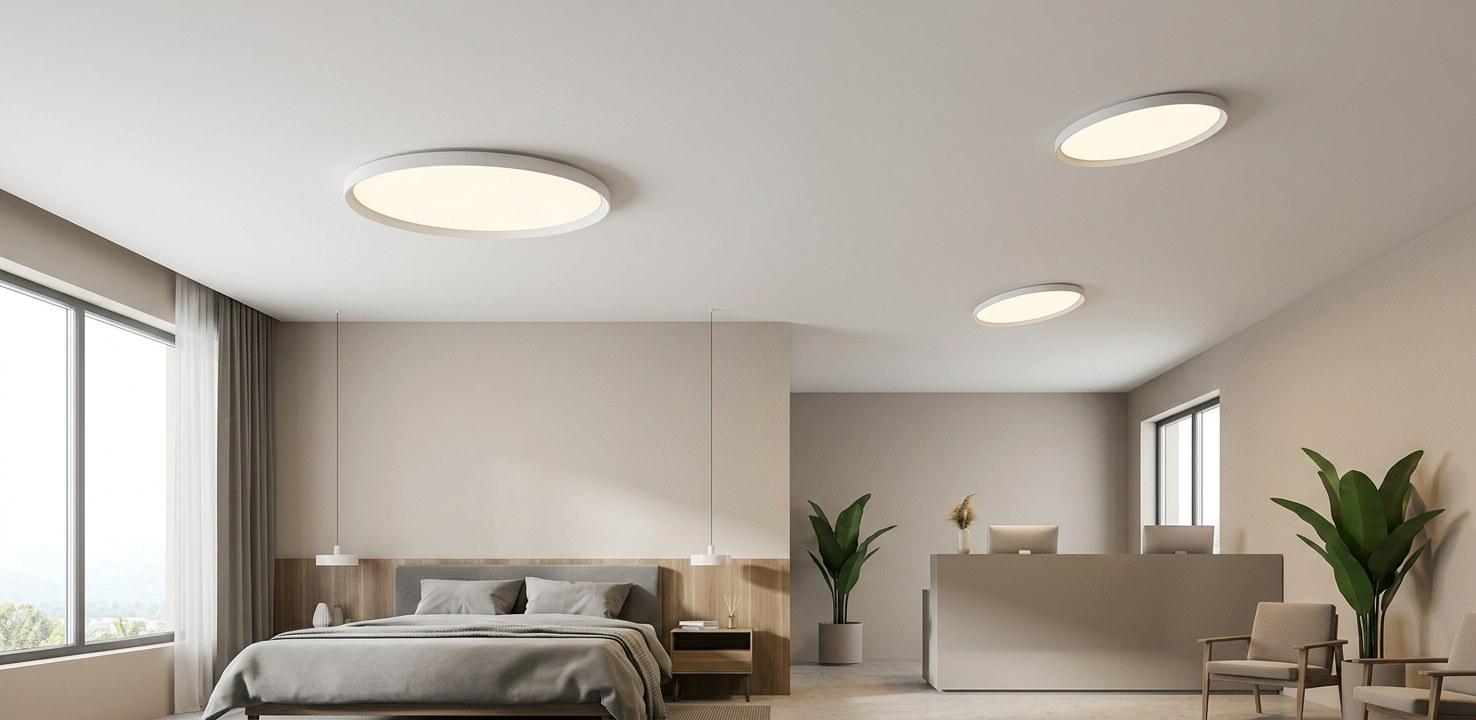

Living rooms, bedrooms, hotel rooms, offices, reception areas, meeting rooms and retail spaces.
FAQ
Q: Which size should I choose?
A: Ø350mm (36W) or Ø450mm (42W) suits bedrooms and small rooms; Ø650mm (55W) and Ø850mm (84W) suit living rooms, lobbies and open offices.
Q: How thin is the light?
A: The total height is 60mm and the panel itself is 28mm.
Q: What colors and color temperatures are available?
A: Sand Black, Sand White and Sand Gold frames, in 3000K, 4000K or 6000K.
Q: How is it packed?
A: JL0070E and JL0071E 5 pcs per carton; JL0072E and JL0073E 1 pc per carton.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom finishes, logo and private-label packaging are available. Contact us for a quotation: [email protected]
