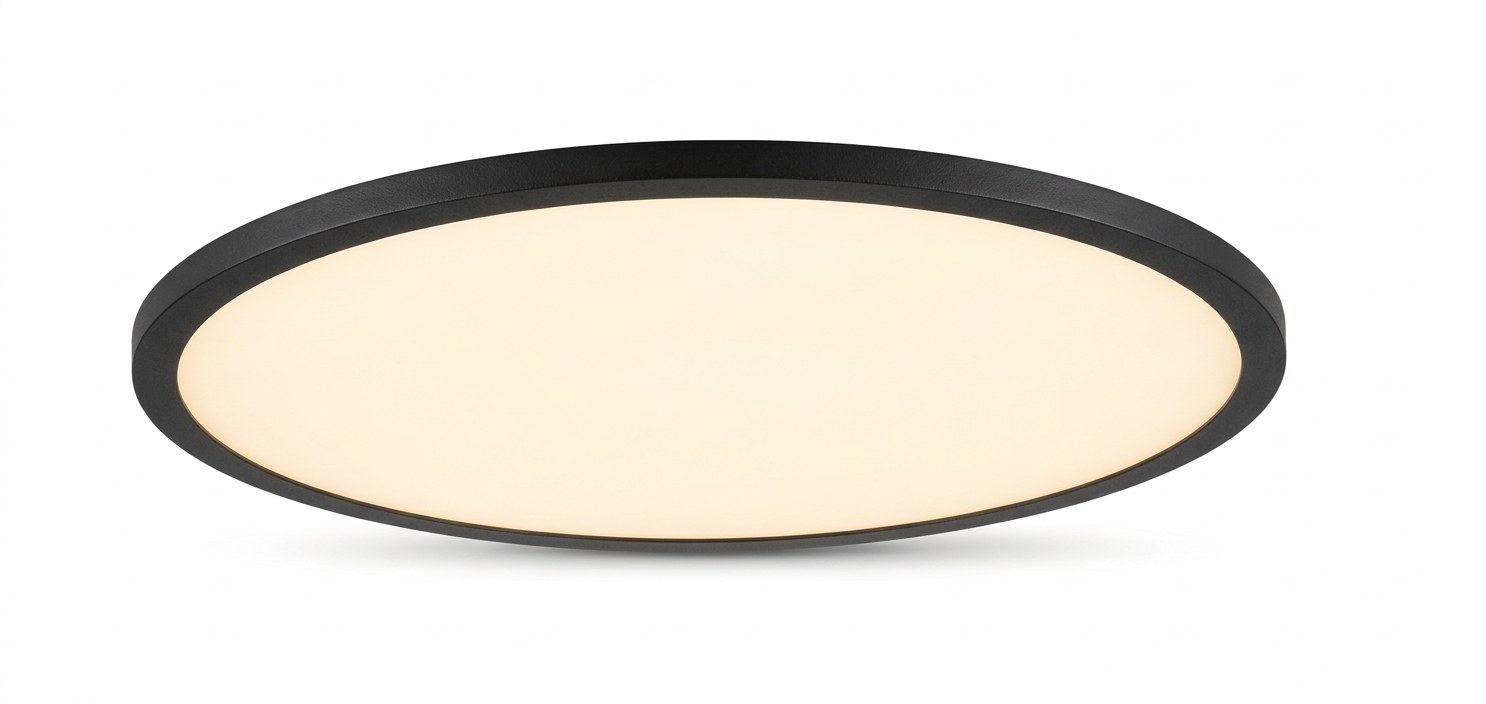

JL0100E Series Slim Round LED Ceiling Panel
An extra-slim surface-mounted round LED ceiling light from Jolite Lighting. The 12.5mm panel sits on a recessed base, so the light appears to float just below the ceiling. Four diameters from Ø350mm to Ø850mm, 36W to 84W Bridgelux LED and a wide 100° beam make it suitable for homes, offices and hospitality spaces.
Key Features
- Bridgelux LED, 2520lm to 6385lm
- Four sizes: Ø350 / Ø450 / Ø650 / Ø850mm
- Extra-slim 12.5mm panel, 45mm total height
- Floating look on a smaller base (Ø246 / Ø246 / Ø346 / Ø546mm)
- Wide 100° beam angle for even general lighting
- Natural-spectrum light with reduced blue-light energy and no UV
- Aluminum housing; Sand Black, Sand White or Sand Gold finish; CCT 3000K / 4000K / 6000K

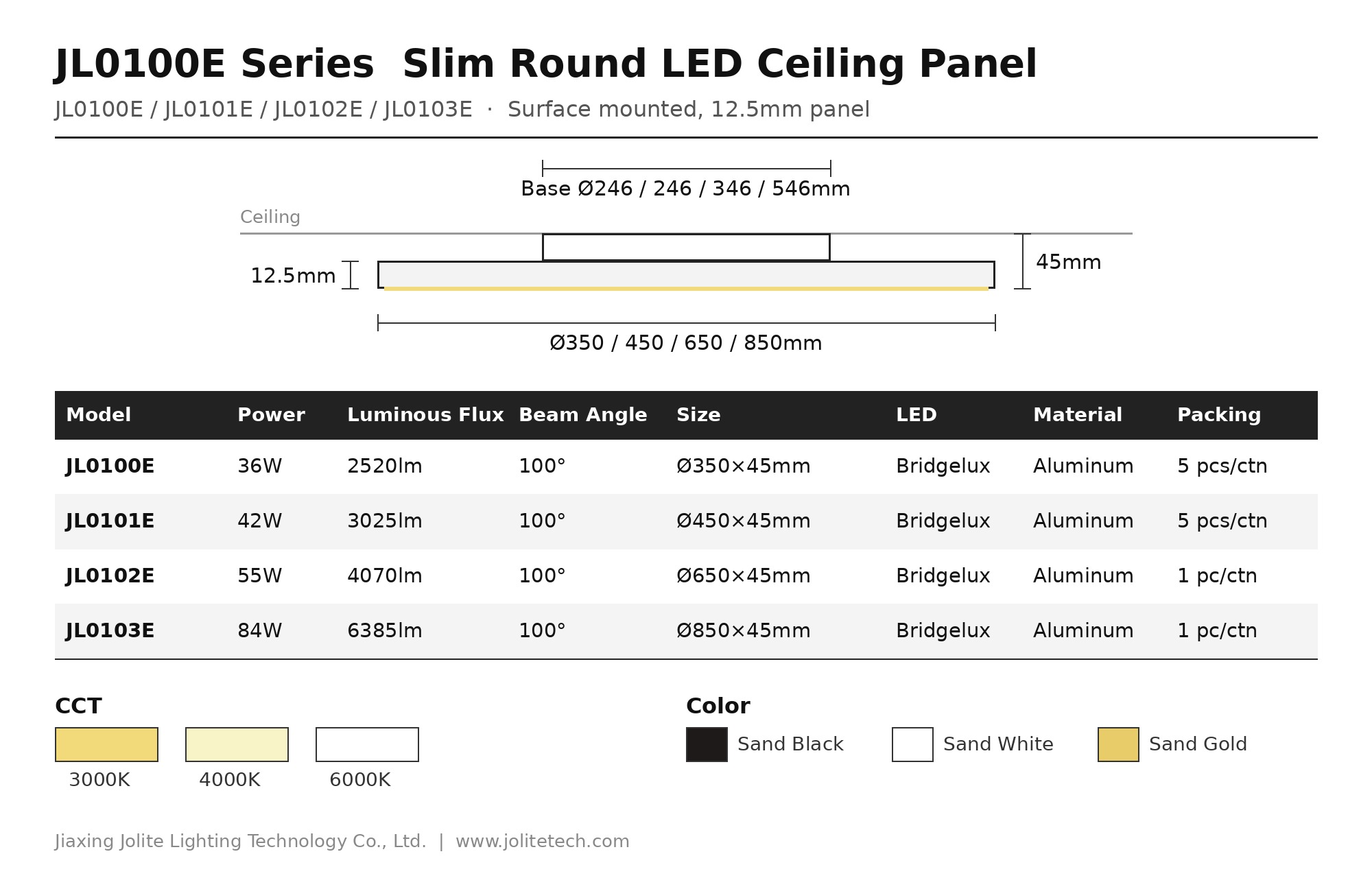

Specifications
| Model | Power | Luminous Flux | Beam Angle | Size | Base | Packing |
|---|---|---|---|---|---|---|
| JL0100E | 36W | 2520lm | 100° | Ø350 × 45mm | Ø246mm | 5 pcs/carton |
| JL0101E | 42W | 3025lm | 100° | Ø450 × 45mm | Ø246mm | 5 pcs/carton |
| JL0102E | 55W | 4070lm | 100° | Ø650 × 45mm | Ø346mm | 1 pc/carton |
| JL0103E | 84W | 6385lm | 100° | Ø850 × 45mm | Ø546mm | 1 pc/carton |
LED: Bridgelux · CCT: 3000K / 4000K / 6000K · Material: Aluminum · Finish: Sand Black / Sand White / Sand Gold · Mounting: surface mounted
Applications

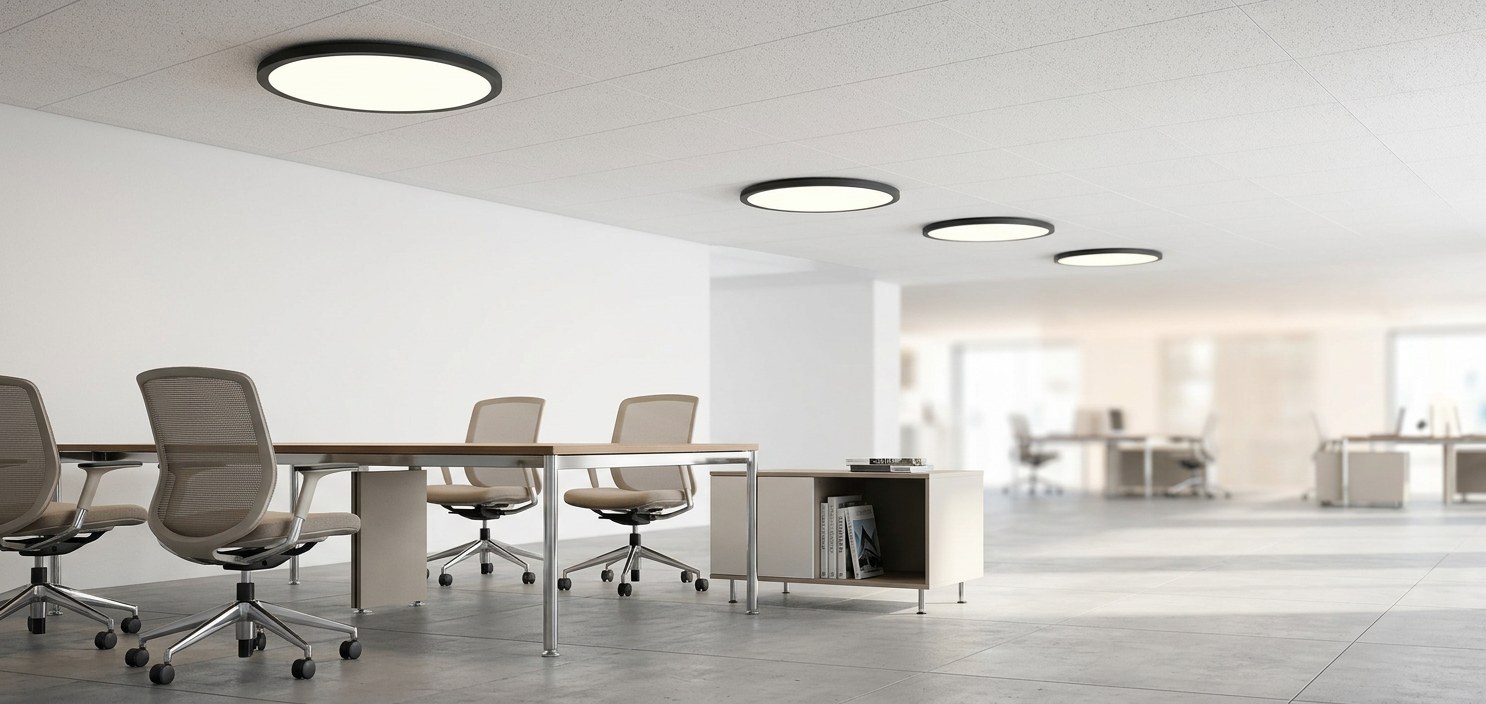

Living rooms, bedrooms, offices, meeting rooms, hotel corridors, showrooms and retail stores.
FAQ
Q: How slim is this ceiling light?
A: The panel is only 12.5mm thick and the total height is 45mm.
Q: Which size should I choose?
A: Ø350mm or Ø450mm for bedrooms and small rooms; Ø650mm or Ø850mm for living rooms, offices and large spaces.
Q: What colors and color temperatures are available?
A: Sand Black, Sand White and Sand Gold, in 3000K, 4000K or 6000K.
Q: How is it packed?
A: JL0100E and JL0101E 5 pcs per carton; JL0102E and JL0103E 1 pc per carton.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom finishes, logo and private-label packaging are available. Contact us for a quotation: [email protected]
