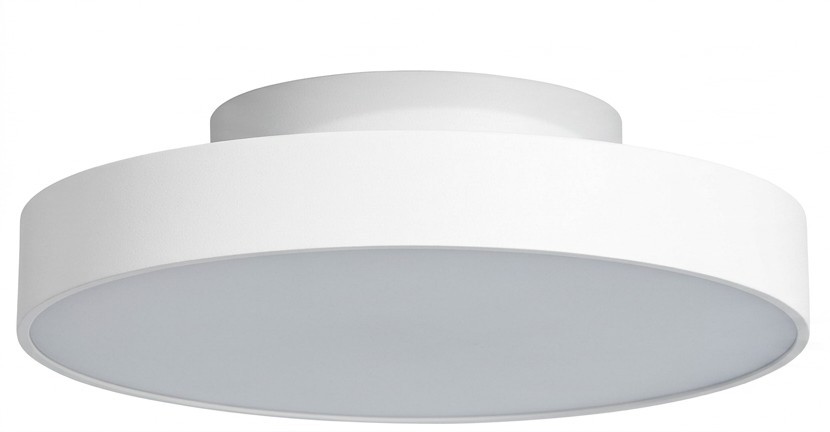

JL0110E Series Round LED Ceiling Light
A round surface-mounted LED ceiling light from Jolite Lighting with a slim aluminum body and a wide 100° beam. Three diameters, Ø300mm, Ø400mm and Ø600mm, all 70mm high, offer 3280lm to 8420lm in Sand White. Suited to bedrooms, living spaces, offices, hotels and shops.
Key Features
- Three sizes: Ø300 / 400 / 600mm, all 70mm high
- 3280lm to 8420lm
- Bridgelux LED (Ø300 / Ø400mm) and CREE / Bridgelux LED (Ø600mm)
- Wide 100° beam angle
- Constant current driver; 1-10V or DALI dimming options
- Aluminum housing in Sand White; CCT 3000K / 4000K / 5000K / 6000K
- IP20, Class II, for indoor use

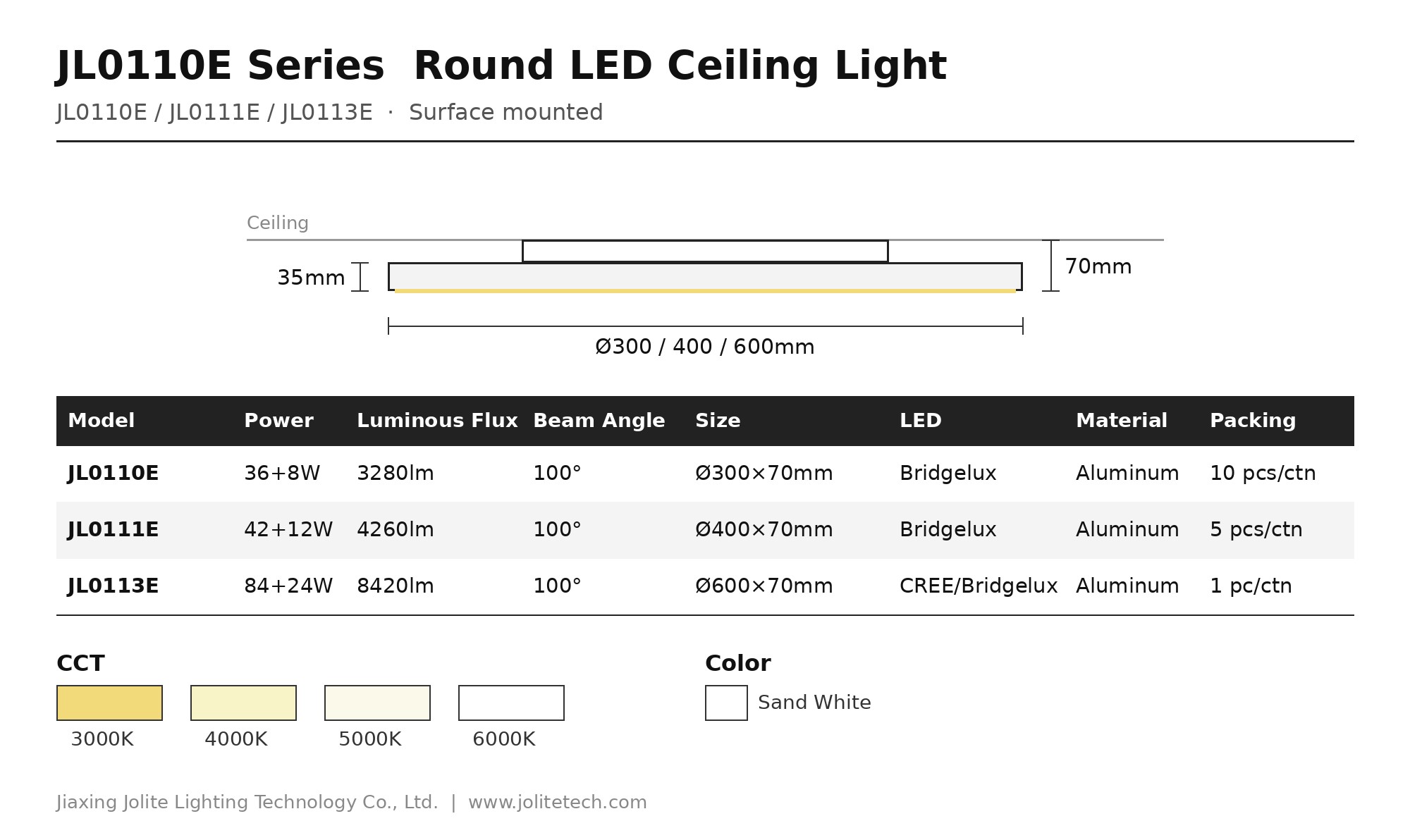

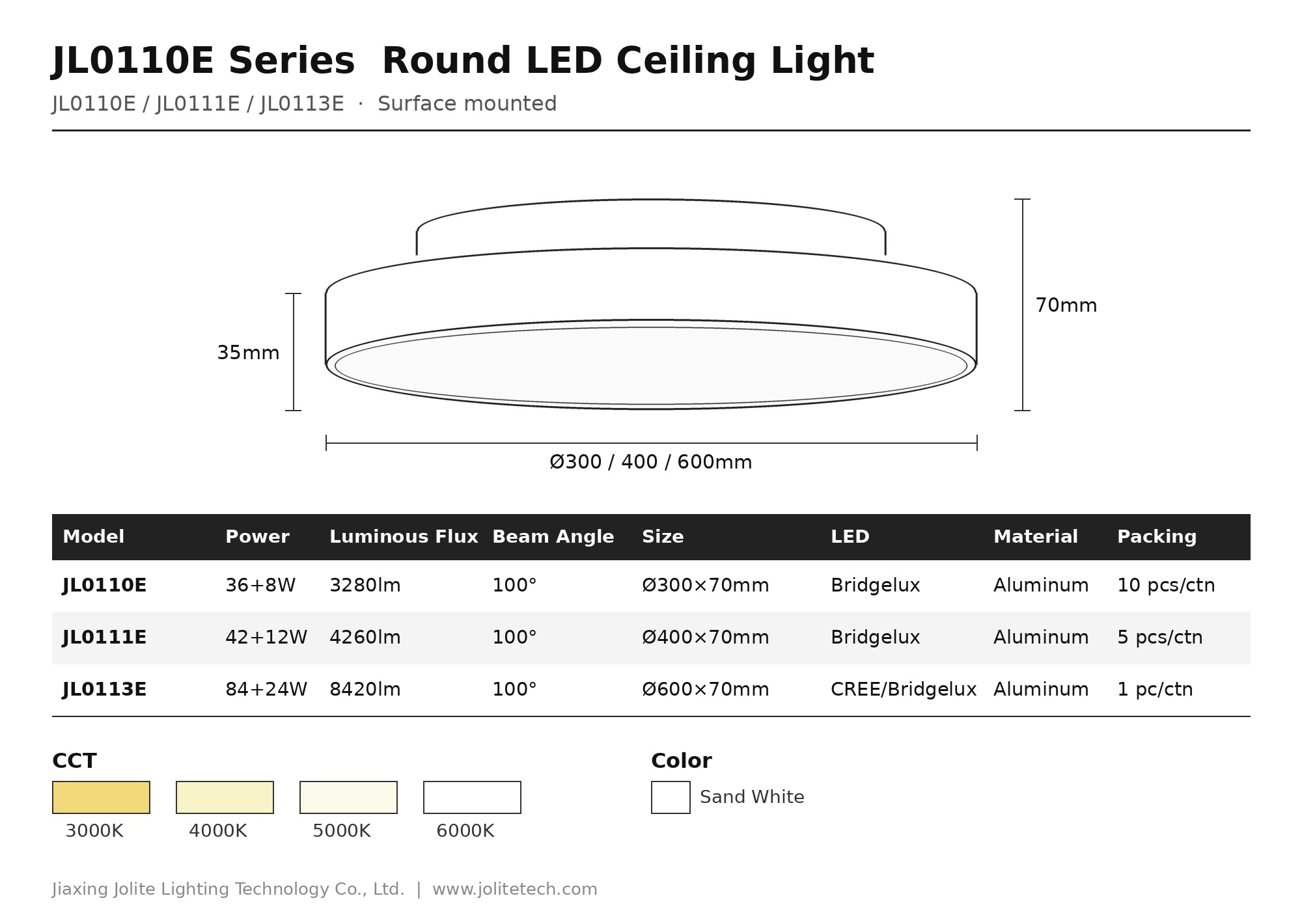

Specifications
| Model | Power | Luminous Flux | Beam Angle | Size | LED | Packing |
|---|---|---|---|---|---|---|
| JL0110E | 36+8W | 3280lm | 100° | Ø300 × 70mm | Bridgelux | 10 pcs/carton |
| JL0111E | 42+12W | 4260lm | 100° | Ø400 × 70mm | Bridgelux | 5 pcs/carton |
| JL0113E | 84+24W | 8420lm | 100° | Ø600 × 70mm | CREE/Bridgelux | 1 pc/carton |
CCT: 3000K / 4000K / 5000K / 6000K · Material: Aluminum · Finish: Sand White · IP20 · Class II · Constant current · Dimming: 1-10V / DALI · Mounting: surface mounted
Applications

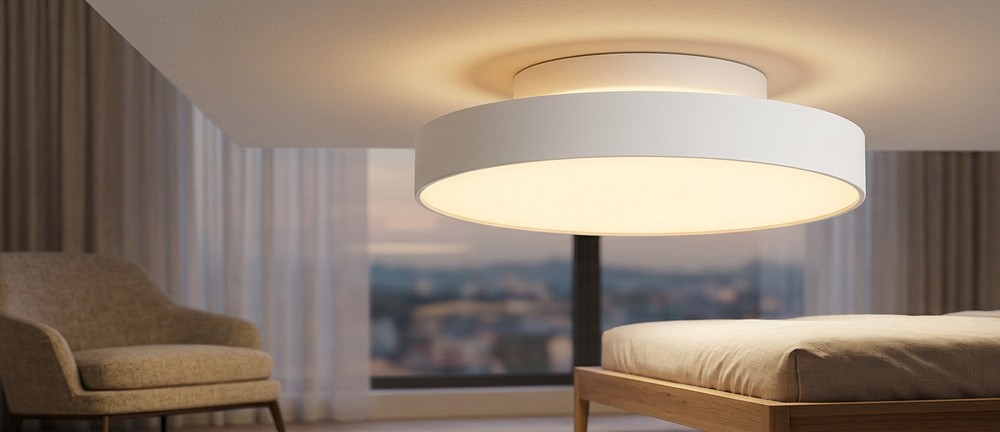

Bedrooms, living rooms, dining areas, offices, hotel rooms and corridors, and shops.
FAQ
Q: Which size should I choose?
A: Ø300mm (JL0110E) or Ø400mm (JL0111E) for bedrooms, corridors and small rooms; Ø600mm (JL0113E) for larger rooms and open areas.
Q: Is it dimmable?
A: The light uses a constant current driver, with 1-10V or DALI dimming available as options.
Q: What finish and color temperatures are available?
A: Sand White, in 3000K, 4000K, 5000K or 6000K.
Q: How is it packed?
A: 10 pcs per carton for Ø300mm, 5 pcs for Ø400mm, and 1 pc per carton for Ø600mm.
Jiaxing Jolite Lighting has manufactured LED lighting since 2012, with CE / SAA / CB / RoHS certification. OEM/ODM, custom finishes, logo and private-label packaging are available. Contact us for a quotation: [email protected]
